Explore the invisio range

CONTROL UNITS HEADSETS INTERCOM Tactical Hubs Accessories

CONTROL UNITS

Scalable tactical communication hub with built-in power

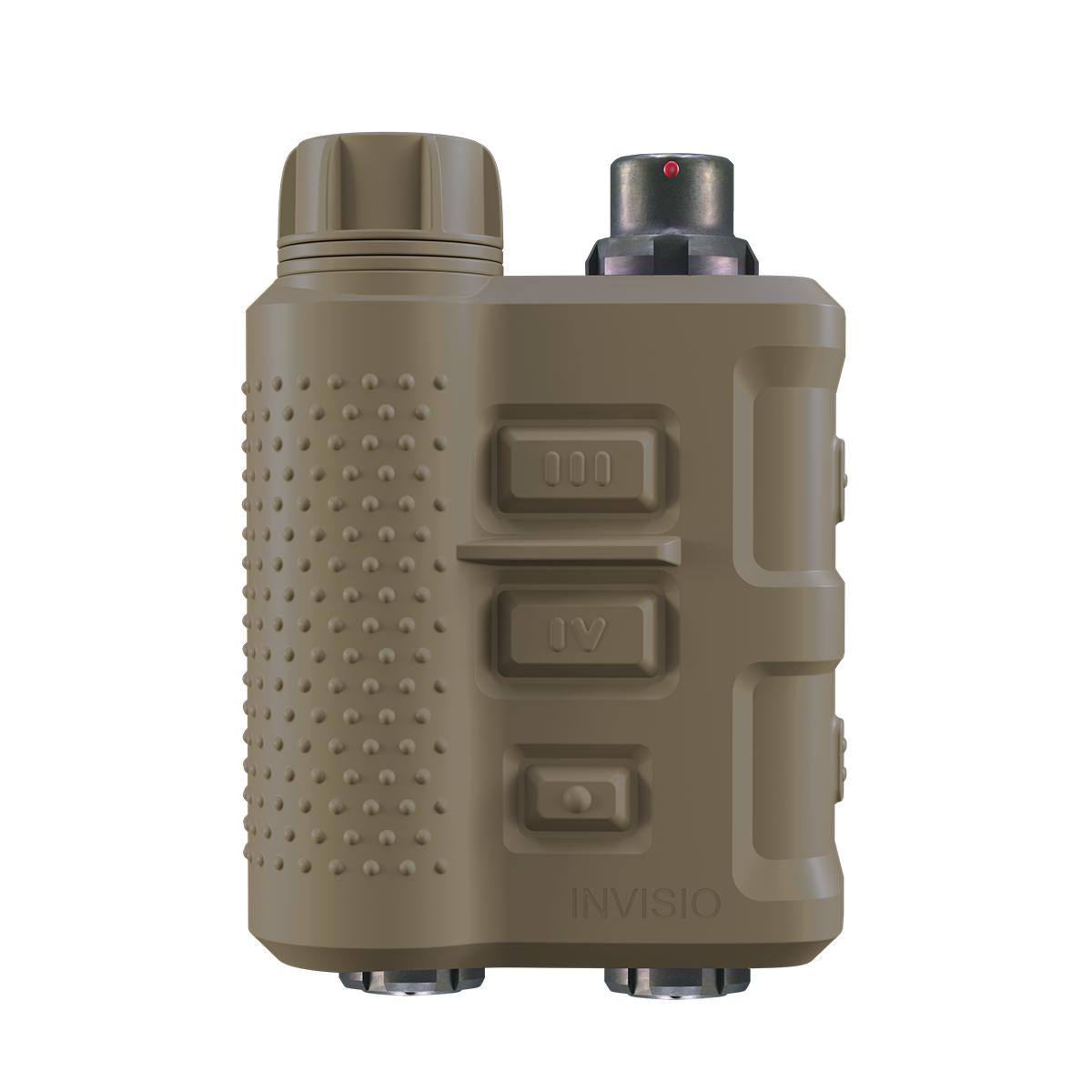

The INVISIO V50 II is a dual com control unit with 2 COM ports, 4 PTT buttons and an internal power supply.

It is designed for users with two communication devices, e.g., team radio, combat net radio, or vehicle intercom system, and a need for built-in power.

This control unit offers state-of-the-art situational awareness and hearing protection, and is fully compatible with other INVISIO systems.

It powers from a battery or any connected comms device, is 20 meters submersible, and MIL-STD 810G and MIL-STD-461F compliant.

The INVISIO V50 II weighs 167 g and measures 70 x 63 x 30 mm.

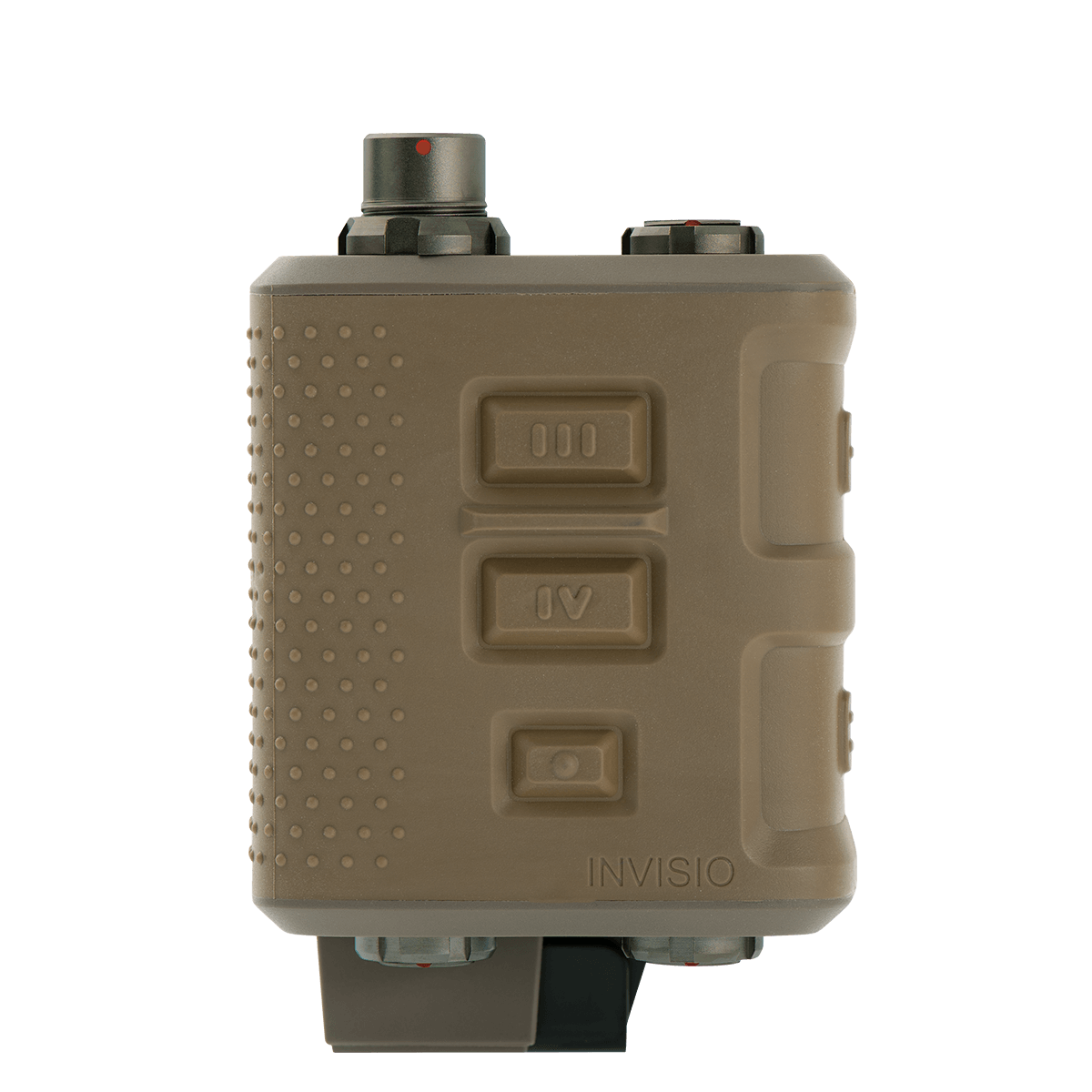

Ultimate warfighter hub bridging audio, data and power

The INVISIO V60 II ADP is a tri com control unit designed to be the ultimate warfighter hub. Bridging audio, data and power, it provides more functionality with less devices by integrating systems and data.

The V60 II ADP routes power and USB data between COM ports, thus acting as a simple USB 2.0 hub.

Notifications from end user devices (EUDs), and live audio streaming can be transmitted directly to the headset.

It is powered from connected comms devices, features 3 COM ports and 4 PTT buttons and is capable of connecting into any type of communication device.

Submersible to 20 meters, MIL-STD-810G and MIL-STD-461F compliant, the V60 II ADP weighs 147 grams and measures 70 x 63 x 25 mm.

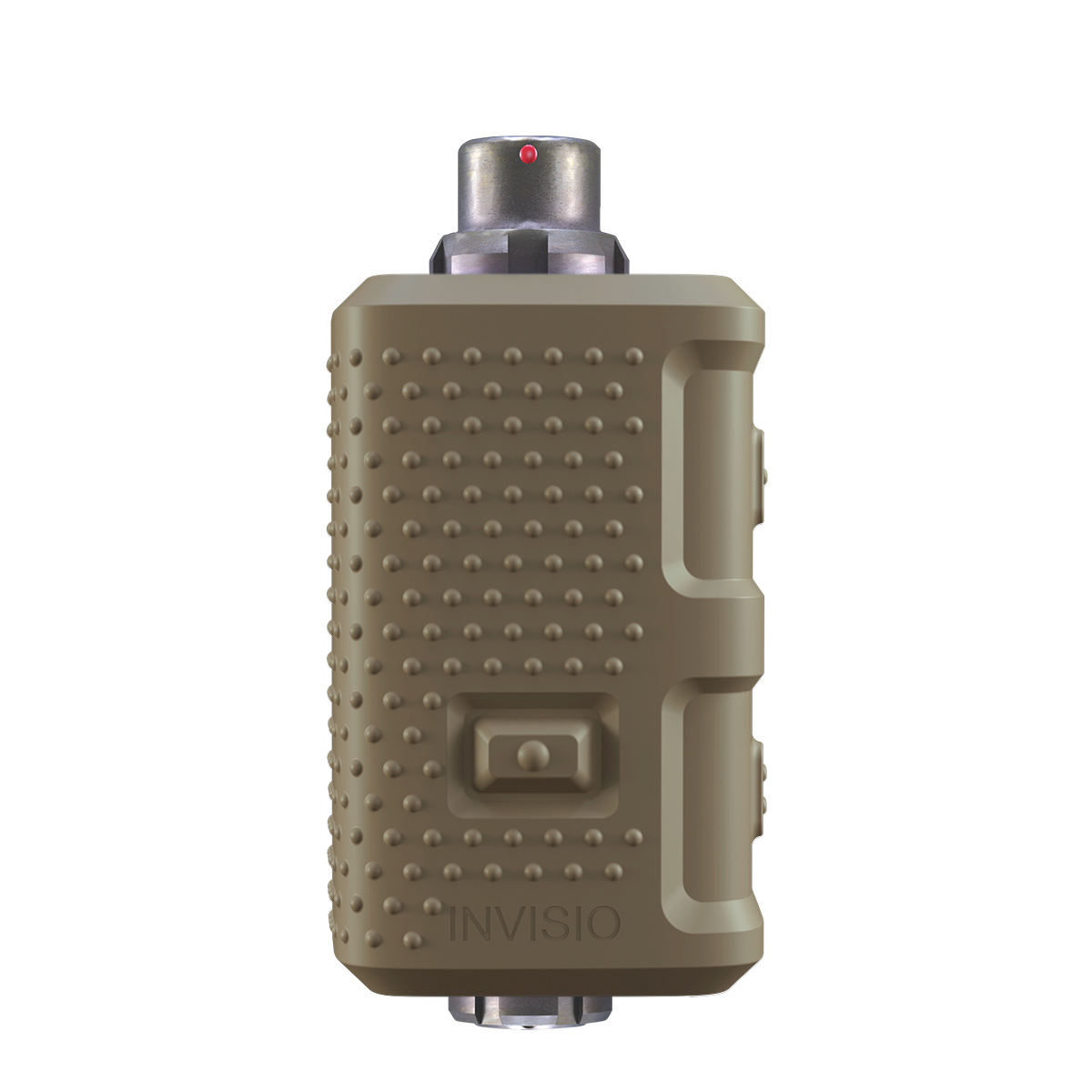

INVISIO V20 II

Simple and lightweight control unit for users with a single radio

The INVISIO V20 II is a single com control unit designed for users with one or two talk groups on a single radio. This control unit has 2 PTT buttons and 1 COM port.

The INVISIO V20 II is intuitive, simple to use, and powers from the connected radio. It is 20 meters submersible, and MIL-STD 810G and MIL-STD-461F compliant.

This control unit offers state-of-the-art situational awareness and hearing protection, and is fully compatible with other INVISIO systems.

Measuring 64 x 40 x 27 mm, and weighing just 100 grams, it is the smallest and lightest control unit available.

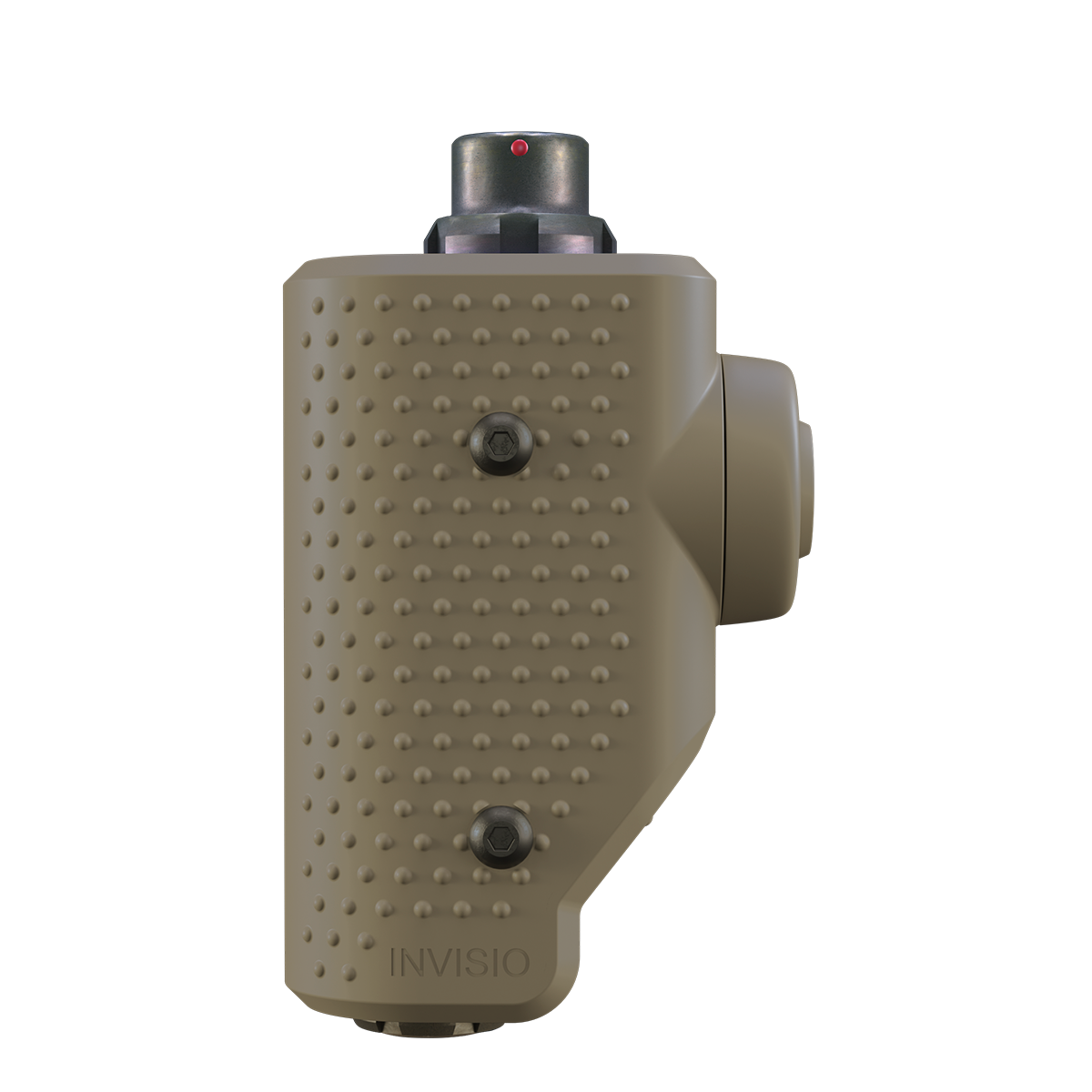

INVISIO V10 II

Lightweight and rugged control unit with a large, exchangeable PTT button

The INVISIO V10 II control unit is a rugged, single-com PTT designed for defense and security professionals with a single radio.

This control unit is simple to use with 1 COM port and 1 large, exchangeable PTT button for left- or right-handed users. It is 20 meters submersible, and MIL-STD 810G and MIL-STD-461F compliant.

The control unit offers state-of-the-art situational awareness and hearing protection, and is fully compatible with other INVISIO systems.

The INVISIO V10 II powers from the connected comms device, weighs 127 grams, and measures 70 x 40 x 27 mm.

INVISIO V60 II

Ultimate tactical communication hub for the advanced user

The INVISIO V60 II is a tri com control unit designed to be the ultimate communications hub. It features 3 COM ports and 4 PTT buttons, and connects into any type of communication device, such as multiple net radios, smart phones, headsets (tactical, covert and commercial) and intercom systems for land, sea and air vehicles.

The control unit offers state-of-the art situational awareness. When connected to the INVISIO X7 and T7 headsets the INVISIO V60 II provides double hearing protection of 43 dB SNR.

It is powered from the connected comms device, is submersible to 20 meters, and MIL-STD-810G and MIL-STD-461F compliant.

The INVISIO V60 II weighs 152 grams and measures 70 x 63 x 25 mm.

HEADSETS

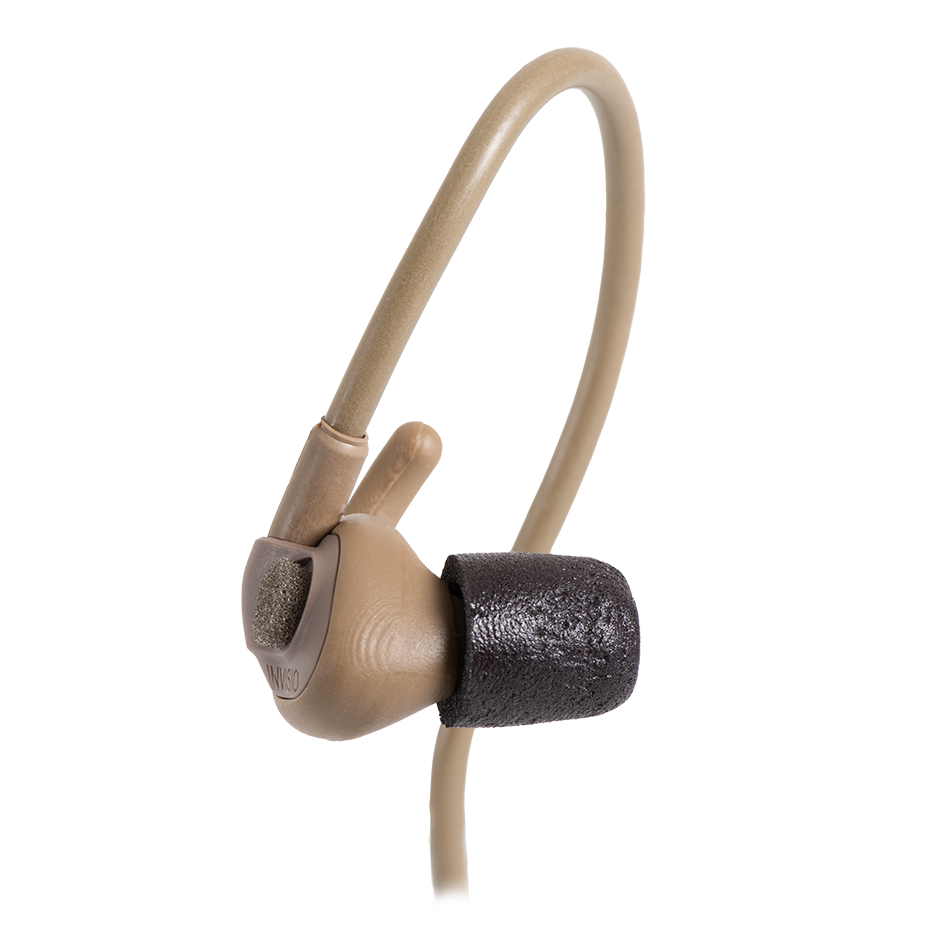

INVISIO X7

Redefining the usability of tactical in-ear headsets

Designed for comfort and ease of use, the INVISIO X7 in-ear headset provides market leading hearing protection, clear communication, and natural, auditory situational awareness. It is powered and operated by an INVISIO Gen II control unit.

The ergonomic design is perfected to fit the ear and soft, yet durable, materials ensure comfort for prolonged usage.
Headset sleeves with an integrated INVISIO EarWing™ protect from wear and tear and provides a more secure and comfortable fit.

There are multiple ear tip options:
– Foam tips for optimal hearing protection (39 dB SNR/32 dB NRR)
– Tri-flanged tips for fast and easy fitting (31 dB SNR/25 dB NRR)
– The INVISIO CustomFit™ – for the ultimate personalization (32 dB SNR/25 dB NRR)

The X7 headset weighs only 47 grams, fits under helmets, eyewear and breathing apparatus, and is MIL-STD-810H compliant.

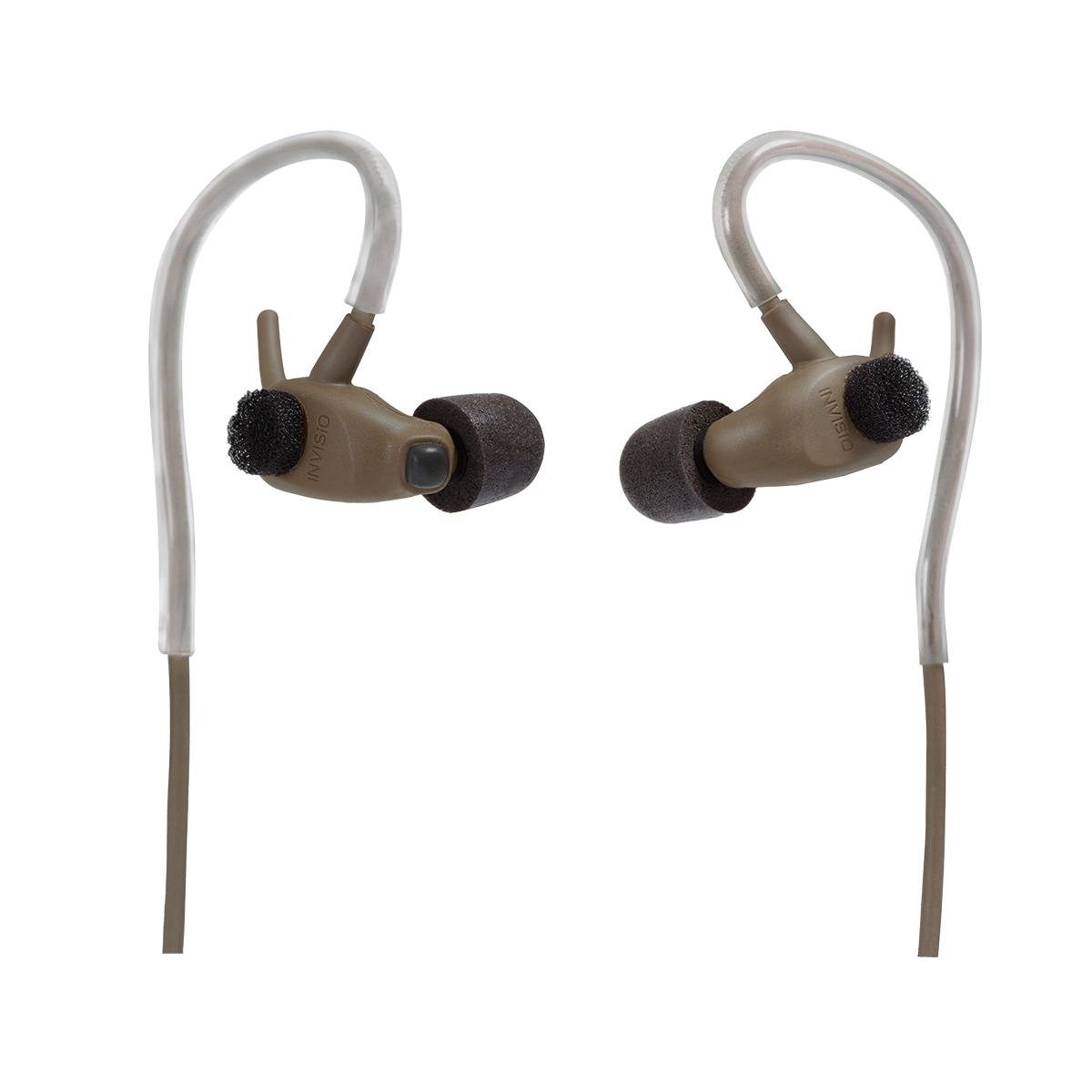

INVISIO X5

Market leading in-ear hearing protection headset with natural situational awareness

The INVISIO X5 headset is based on bone conduction technology with external microphones for natural hear-through. It features six sizes of exchangeable foam plugs for market-leading hearing protection and comfort.

INVISIO X5 is the in-ear headset of choice for modern soldier and law enforcement programs. The headset is fully compatible with other INVISIO systems and fits under helmets, eyewear, breathing apparatus and earmuffs.

The INVISIO X5 offers 32 dB SNR/29 dB NRR hearing protection, is submersible down to 2 meters and weighs only 70 grams.

It is certified according to MIL-STD-810G.

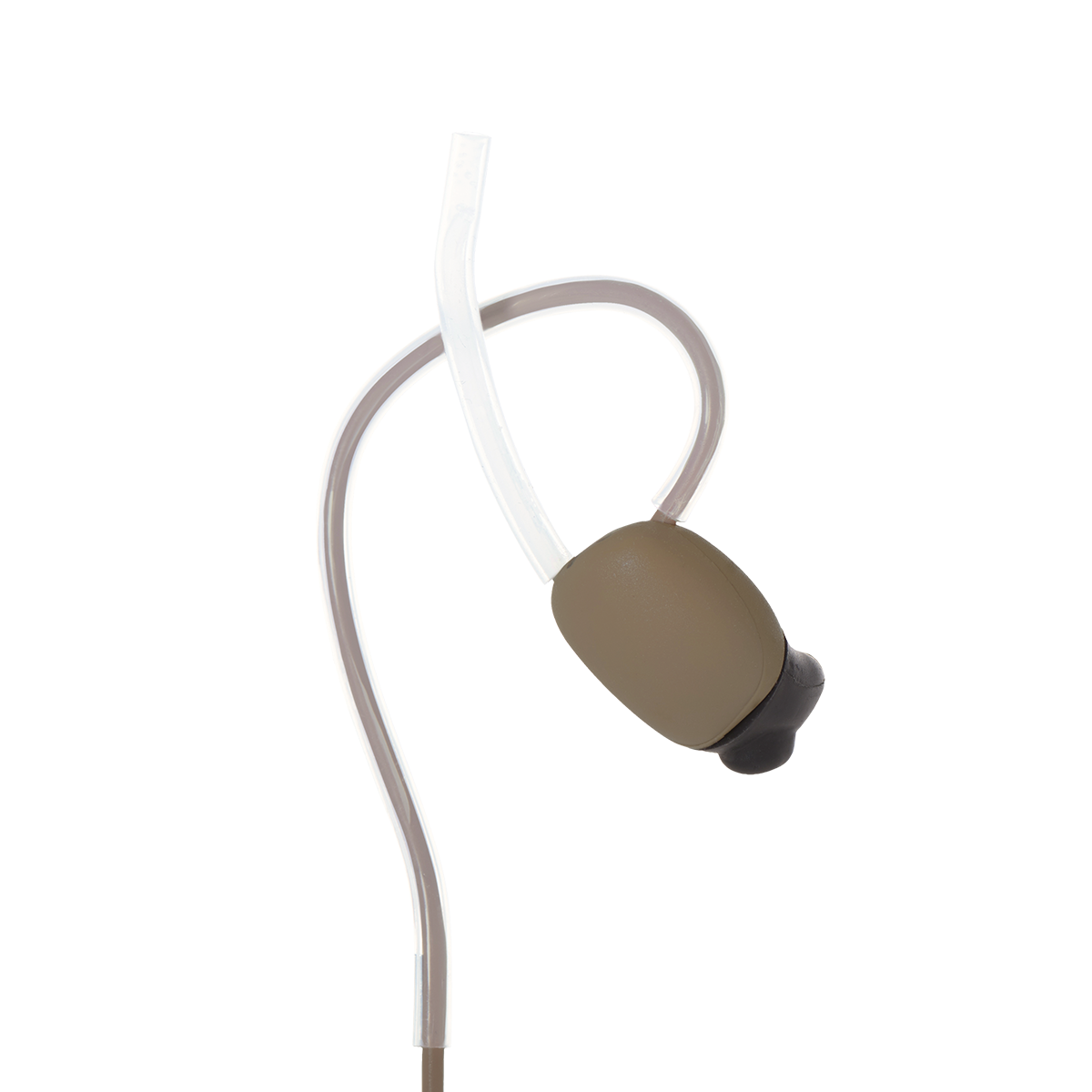

INVISIO M3s

The submersible in-ear headset for use both in and out of the water

The INVISIO M3s single-sided dive headset enables the INVISIO system to be submersible to 20 meters.

This in-ear communication headset is ideal both as a dive solution and for land operations where a lightweight and comfortable single-sided headset is required. It features INVISIO’s bone conduction microphone for crystal clear communication.

The INVISIO M3s weighs only 18 grams and is encased with no openings, making it robust and easy to maintain. It comes in a left or right version.

This headset does not provide hearing protection.

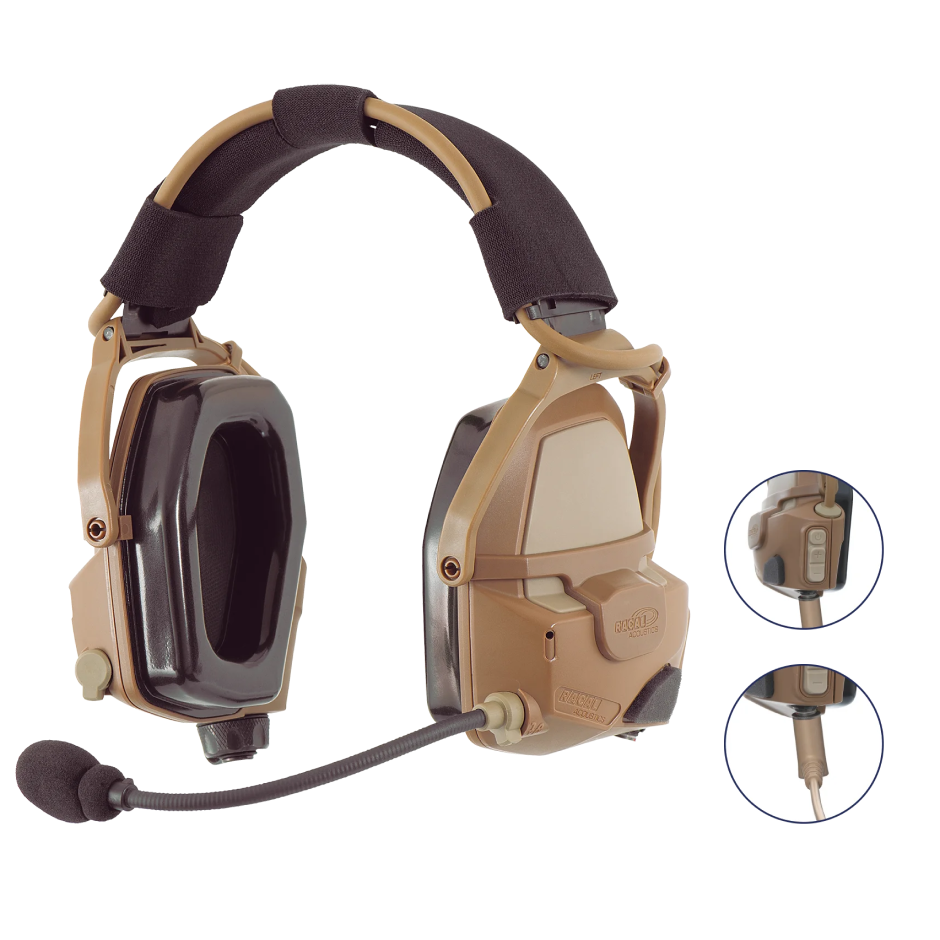

RA5100

Versatile headset for both in-vehicle and on-foot missions

The RA5100 is a versatile headset for use in both in-vehicle and on-foot missions. Its digital technology ensures hearing protection of 30 dB SNR with Active Noise Reduction (ANR), excellent speech intelligibility, and situational awareness.

The RA5100 is software-upgradable and has built-in power for stand-alone operation or can be battery powered for reduced weight.

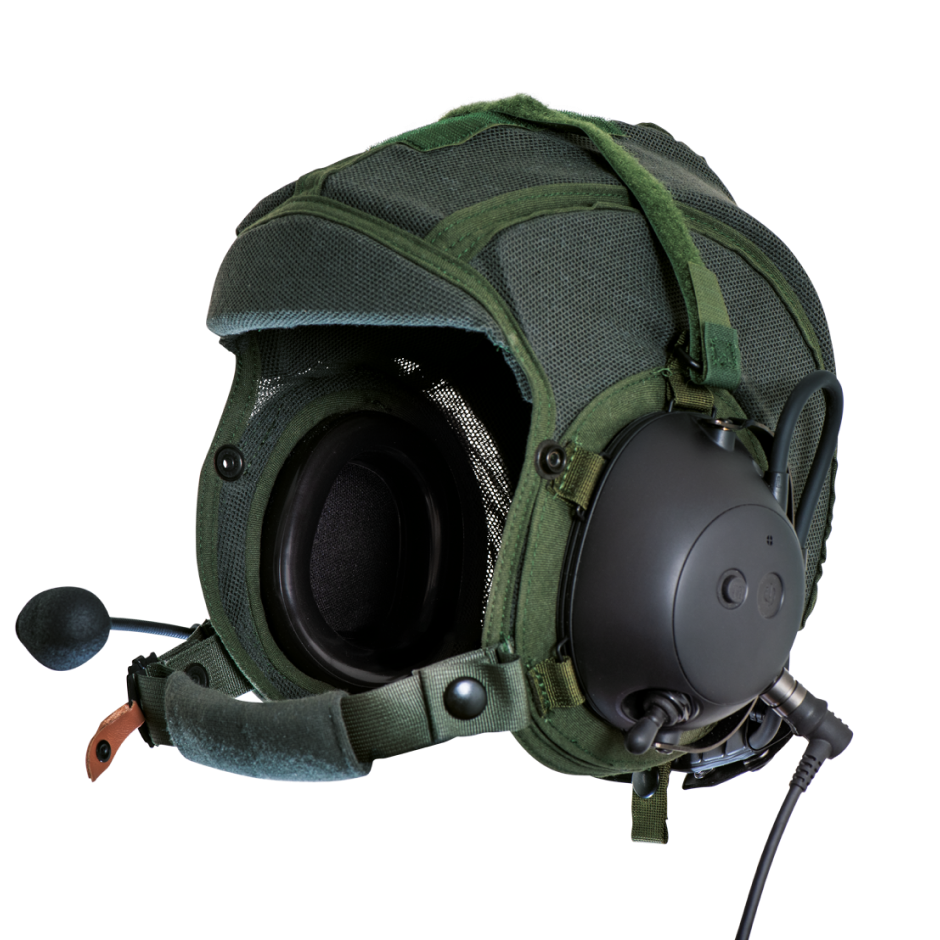

RA4000

Ultimate hearing protection in high noise environments

The RA4000 headset delivers best-in-class hearing protection, communications intelligibility and situational awareness for any vehicle platform.

As a complete and digital solution, it offers modular, customizable, and upgradeable features and accessories to match specific mission requirements and extend useful life.

The RA4000 Magna has built-in power for stand-alone operation and complies to industry standards.

It is easy to use, with ergonomic PTT, mode and volume controls.

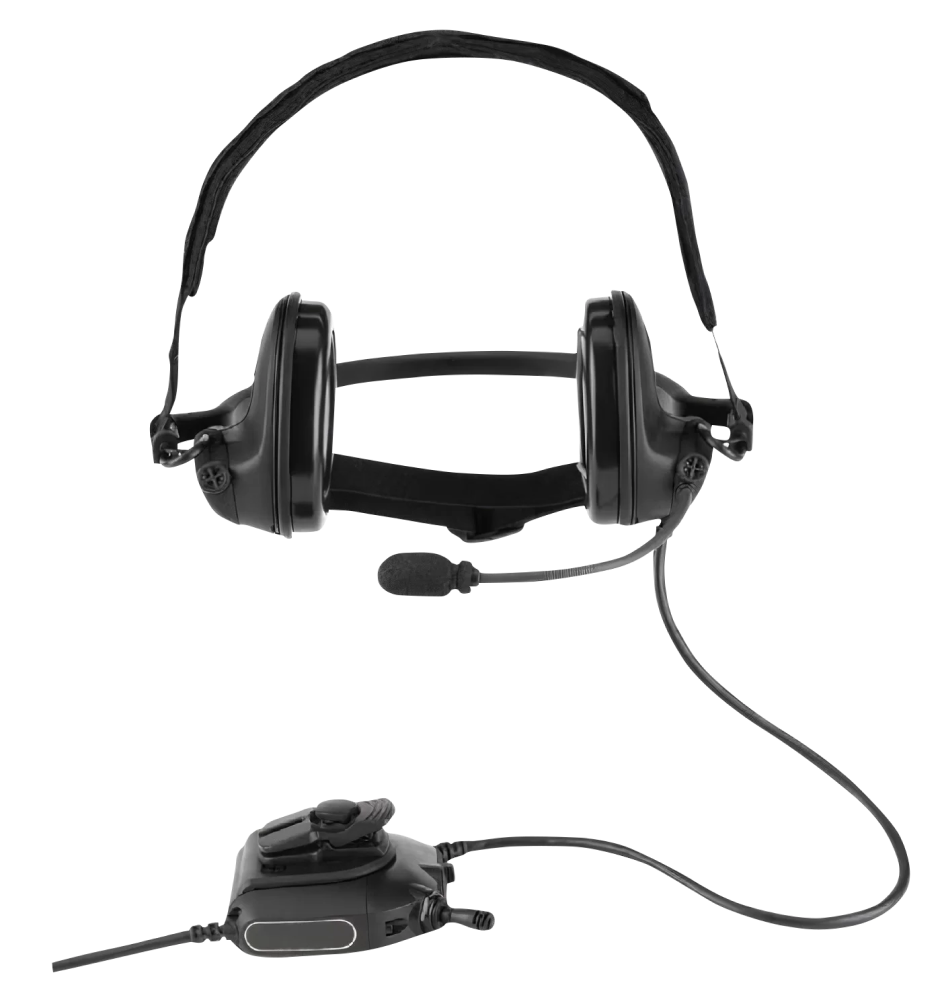

RA5001

ANR, communication intelligibility and situational awareness

RA5001 Raptor combines monaural or binaural communication, hearing protection, intelligibility and situational awareness into a lightweight, comfortable and extremely rugged design.

It is ideal for use with next-generation commercial and military intercom systems in wheeled vehicles, shelters, and tactical operation centres.

The push-to-talk (PTT) unit reduces the head borne weight and allows users to select between microphone, listen-only and radio modes.

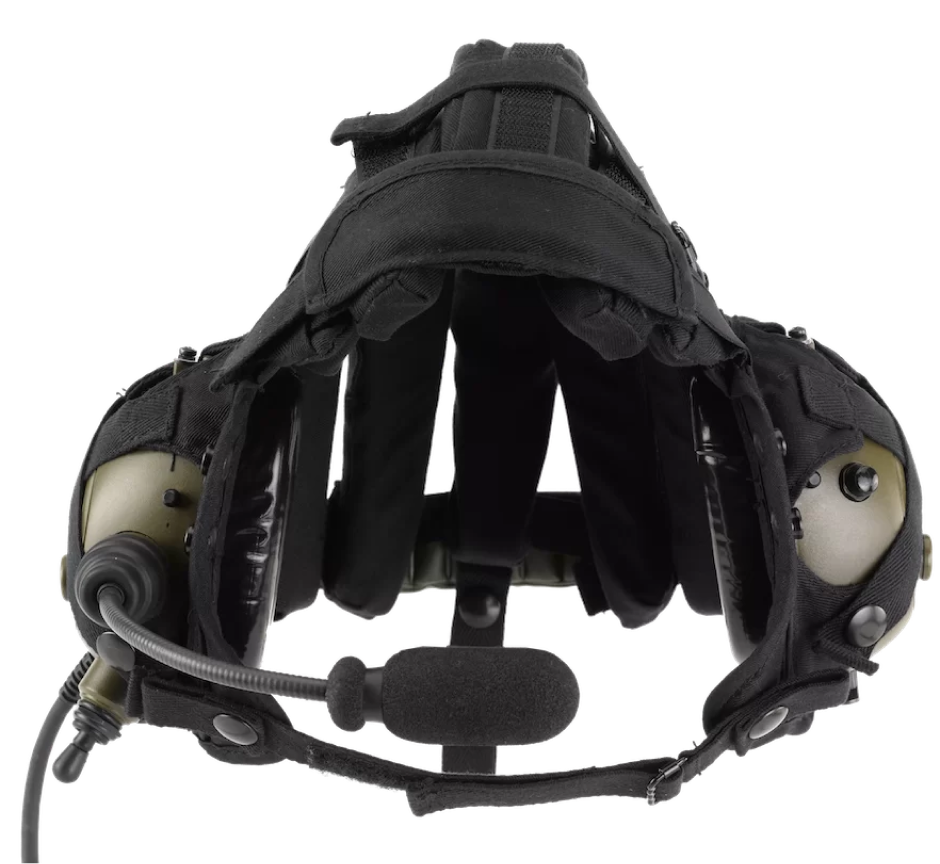

RA315

Adaptable to the requirements of vehicle crews and other operators in high-noise environments

RA315 Integrated Helmet System delivers reliable clear voice communication in Main Battle Tanks (MBT), Armoured Fighting Vehicles (AFV) and other tracked, high noise vehicles.

The headset is suspended in a ventilated soft liner that provides bump protection when a vehicle is moving over rough terrain. Optional hard helmet shells, in bump or ballistic grades, can be attached.

ADVISORY: RA315 is designed and engineered to meet special customer agreed requirements, not certified to CE or RoHS compliant.

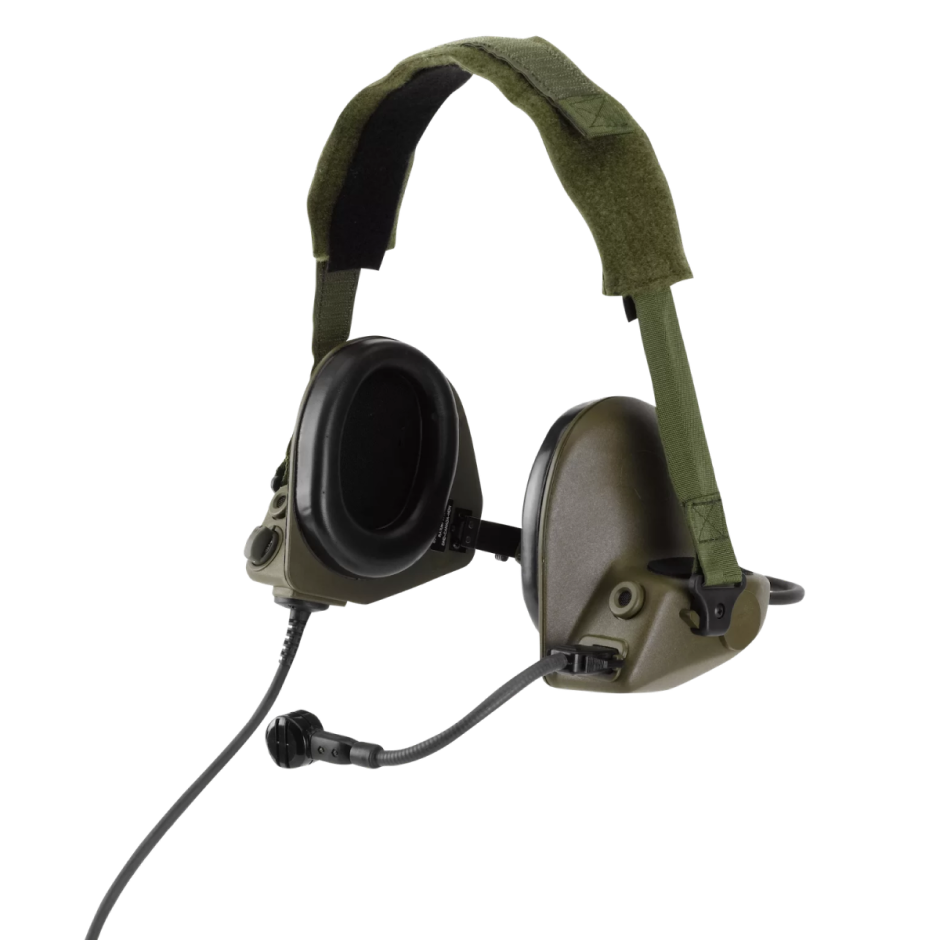

RA108

Combined Passive and Active Noise Reduction for excellent speech intelligibility and hearing protection

RA108 is a headset for use in high noise environments which is also compatible with close-fitting ballistic helmets. The headset attenuates higher-frequency ambient noise through Passive Noise Reduction (PNR), using the mass and volume of the headset.

For lower frequencies it relies on supplementary attenuation from low-profile Active Noise Reduction (ANR) modules in each earcup.

ADVISORY: RA108 is designed and engineered to meet special customer agreed requirements, not certified to CE or RoHS compliant.

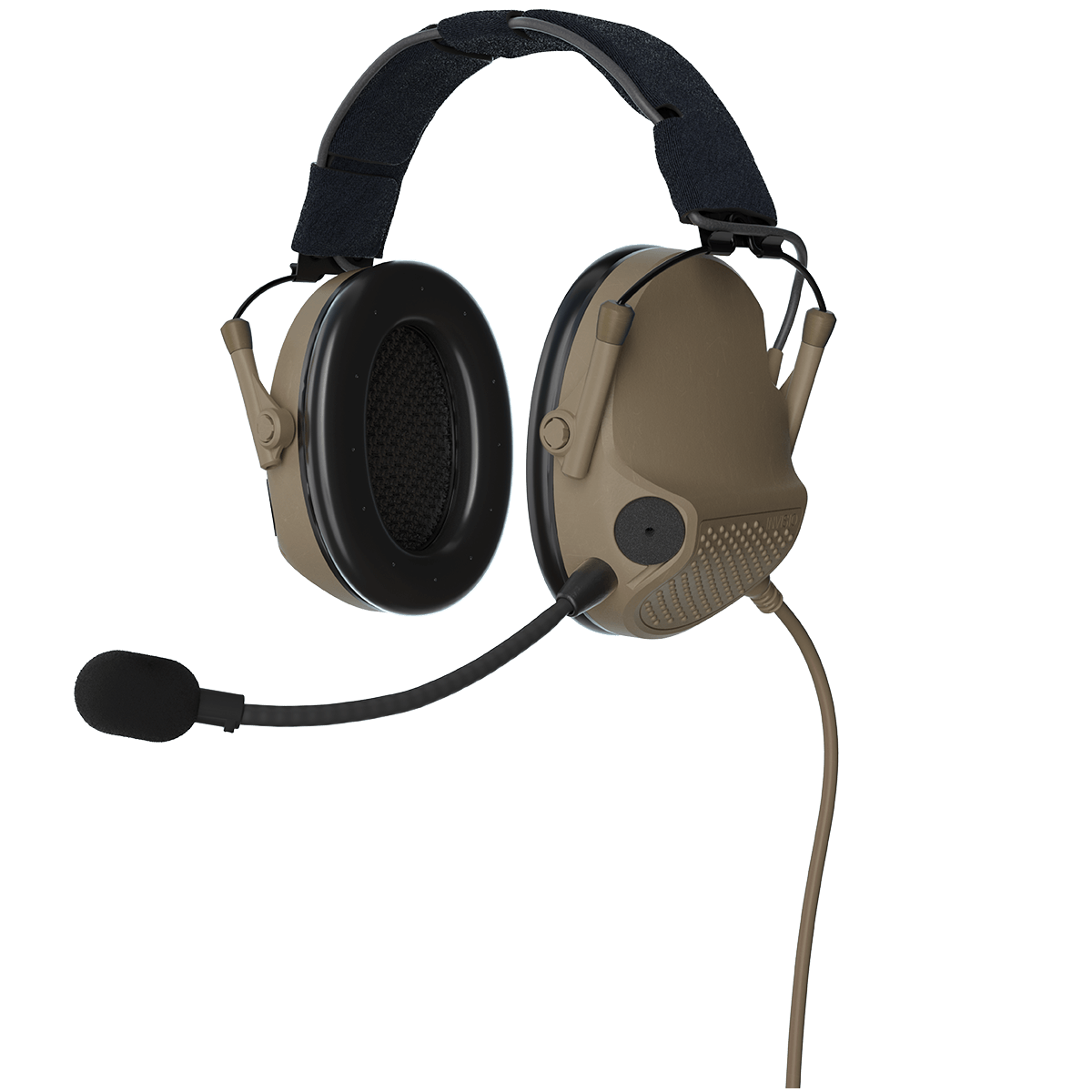

INVISIO T7

Submersible and lightweight tactical over-the-ear hearing protection headset

The INVISIO T7 is a submersible, rugged and lightweight hearing protection headset available in three interchangeable variants.

When used with INVISIO control units, the T7 provides market-leading 28 dB SNR hearing protection, state-of-the-art situational awareness and clear communication in all environments.

The T7 headset weighs only 347 grams and is tested and certified according to MIL-STD-810G.

Available in interchangeable headband, neckband and helmet mount versions.

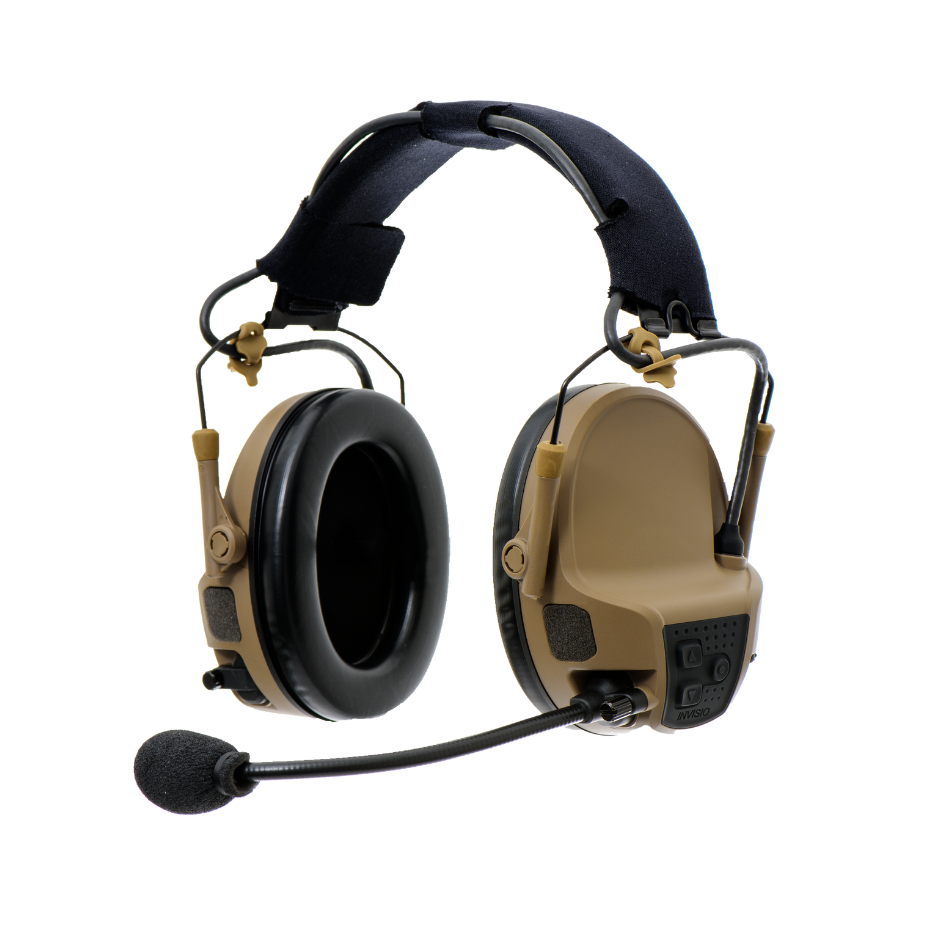

INVISIO T30

One headset, unlimited versatility, zero compromise

The INVISIO T30 delivers unlimited versatility, with zero compromise to sound quality, hearing protection and situational awareness.

Whether in training or on mission, mounted or dismounted, the T30 is the only headset needed across all scenarios.

Powered by embedded INVISIO Audio technology, the T30 ensures next-level clarity, precise situational awareness, and market-leading hearing protection with 30 dB SNR / 33 dB NRS_A20.

Weighing just 347 grams, the INVISIO T30 is MIL-STD-810H compliant and built to perform in the toughest conditions.

Available in interchangeable headband, neckband, and helmet mount configurations.

INTERCOM

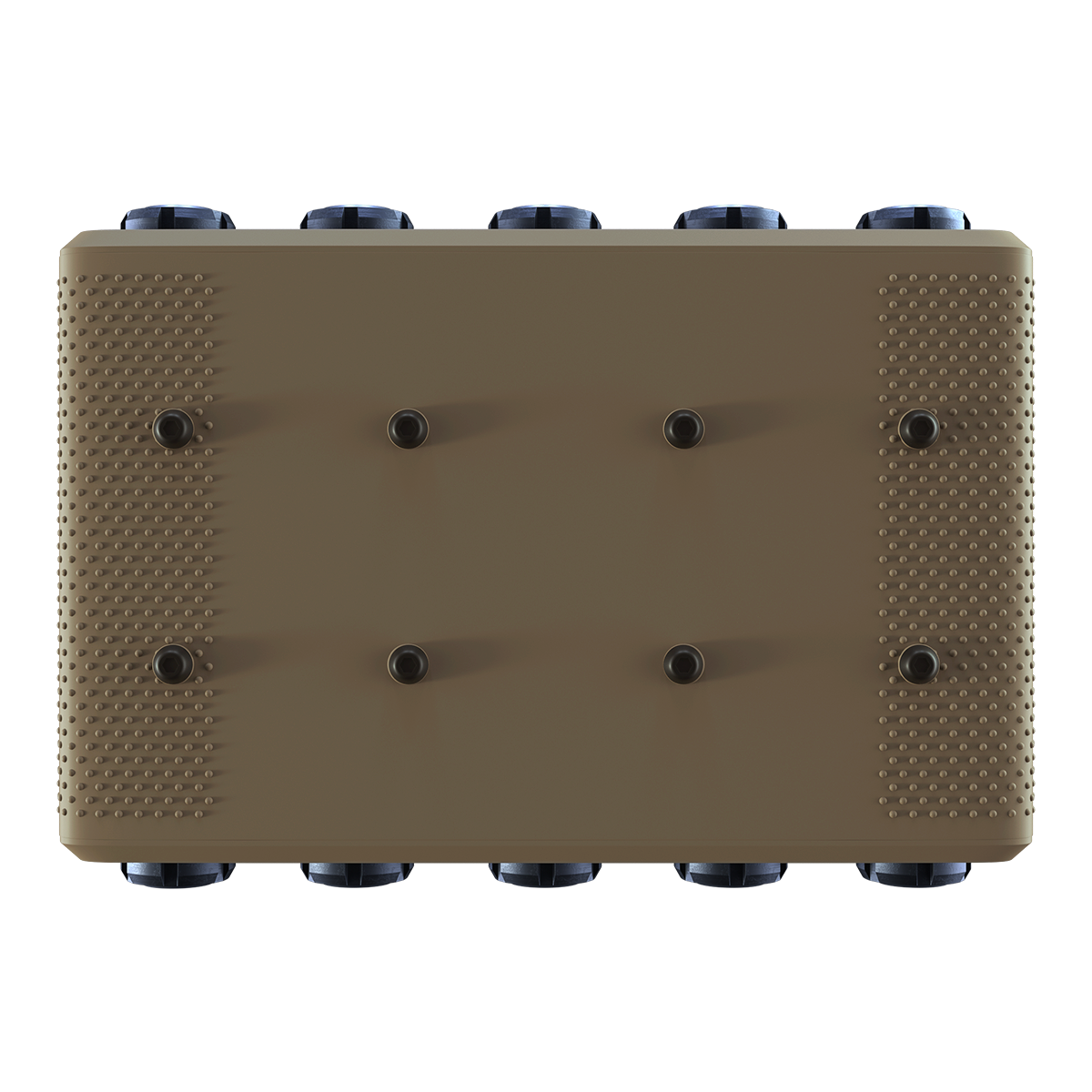

INVISIO Intercom unit

Plug into the INVISIO Intercom and access vehicle comms directly from the control unit

The INVISIO Intercom is designed to bridge the gap between the dismounted and mounted professional by seamlessly integrating the INVISIO personal system and vehicle comms.

Capable of connecting to 4 combat net radios, and 5 users for internal voice communication, the intercom has cable autosensing.

It is a small and lightweight system that can be powered from a vehicle or common combat radio battery.

The INVISIO Intercom weighs 563 grams and measures 150 x 95 x 27 mm.

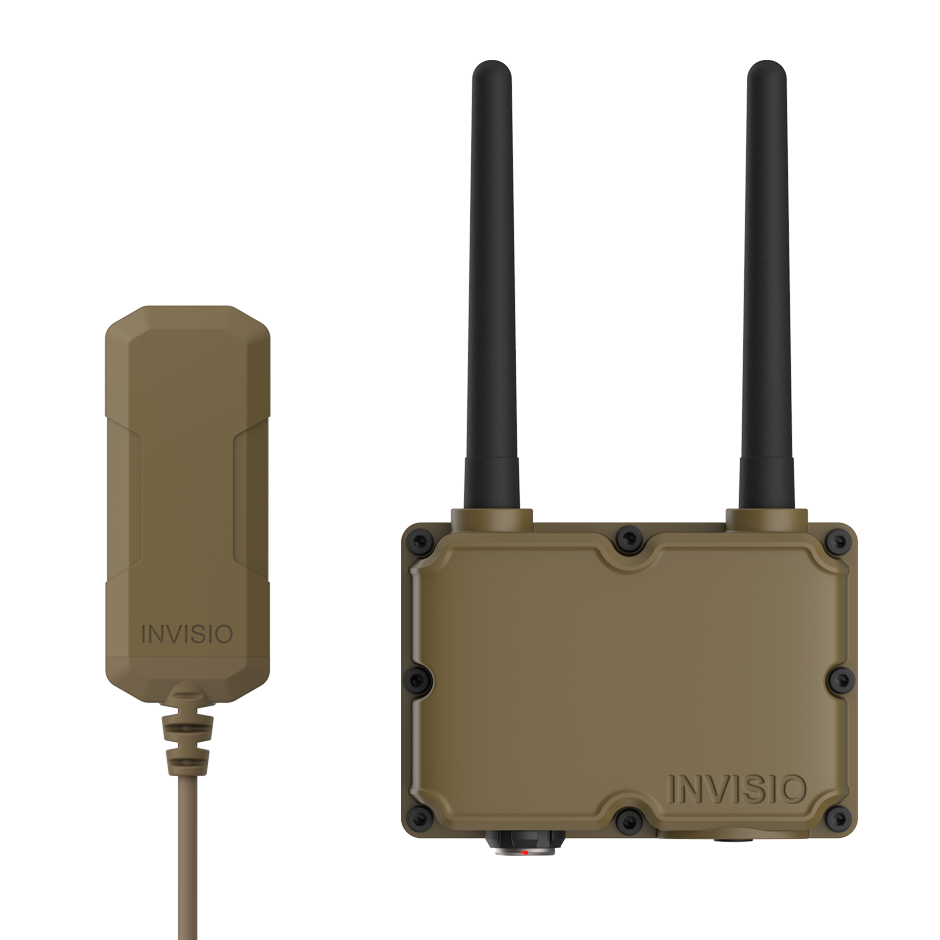

INVISIO Link™

Unlimited mobility through wireless comms

INVISIO Link™ offers seamless wireless communication for military and public safety platforms, providing more freedom with fewer cords.

It enhances the INVISIO Intercom system by wirelessly integrating the INVISIO body-worn system and vehicle comms, bridging the gap between dismounted and mounted users.

The solution includes a dongle for the body-worn system and a base station for the intercom device, eliminating the need for wired connections between the control unit and the Intercom system.

INVISIO Link™ is small, lightweight and designed to be carried on the go or mounted directly onto any vehicle platform.

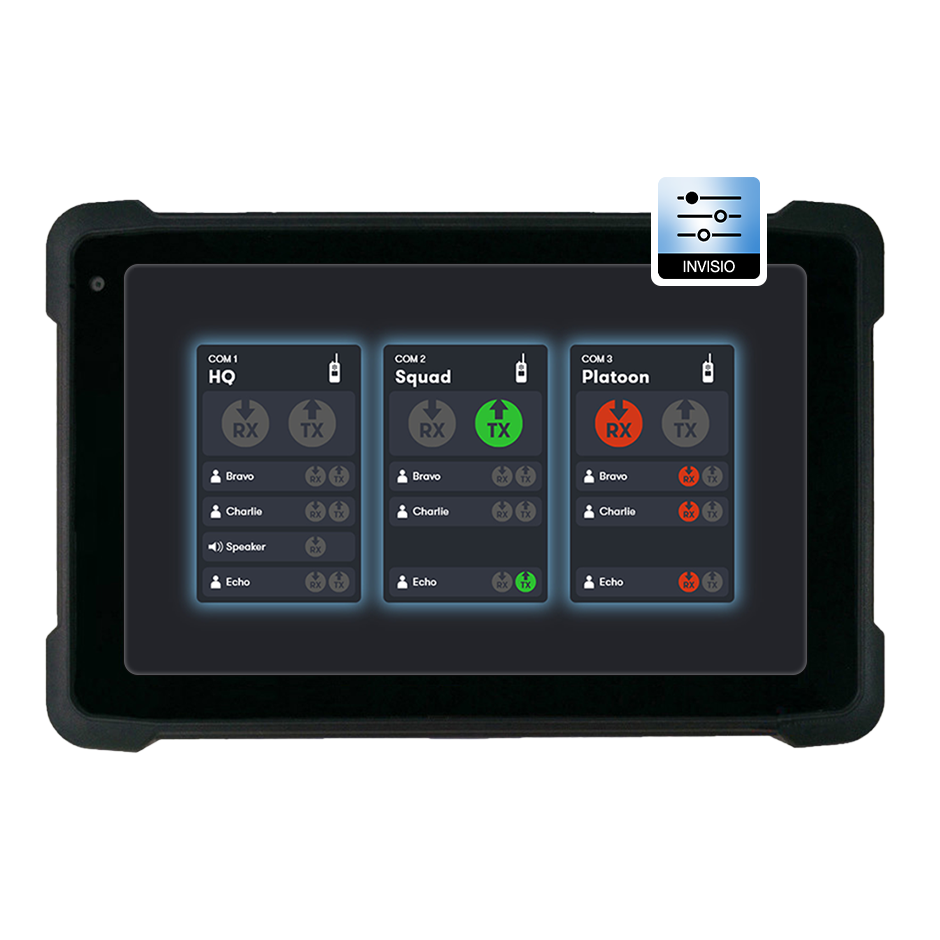

INVISIO Control™ app

Tailor to the mission and change on the go

The INVISIO Control™ app provides military and public safety professionals access to manage their INVISIO Intercom system pre-mission or on the go.

Via an intuitive interface users can get an overview of the communication at all times, control and adjust access rights and change audio settings.

The solution is available as a Windows app or as an API that can be integrated into existing systems, such as navigation- or battle management systems.

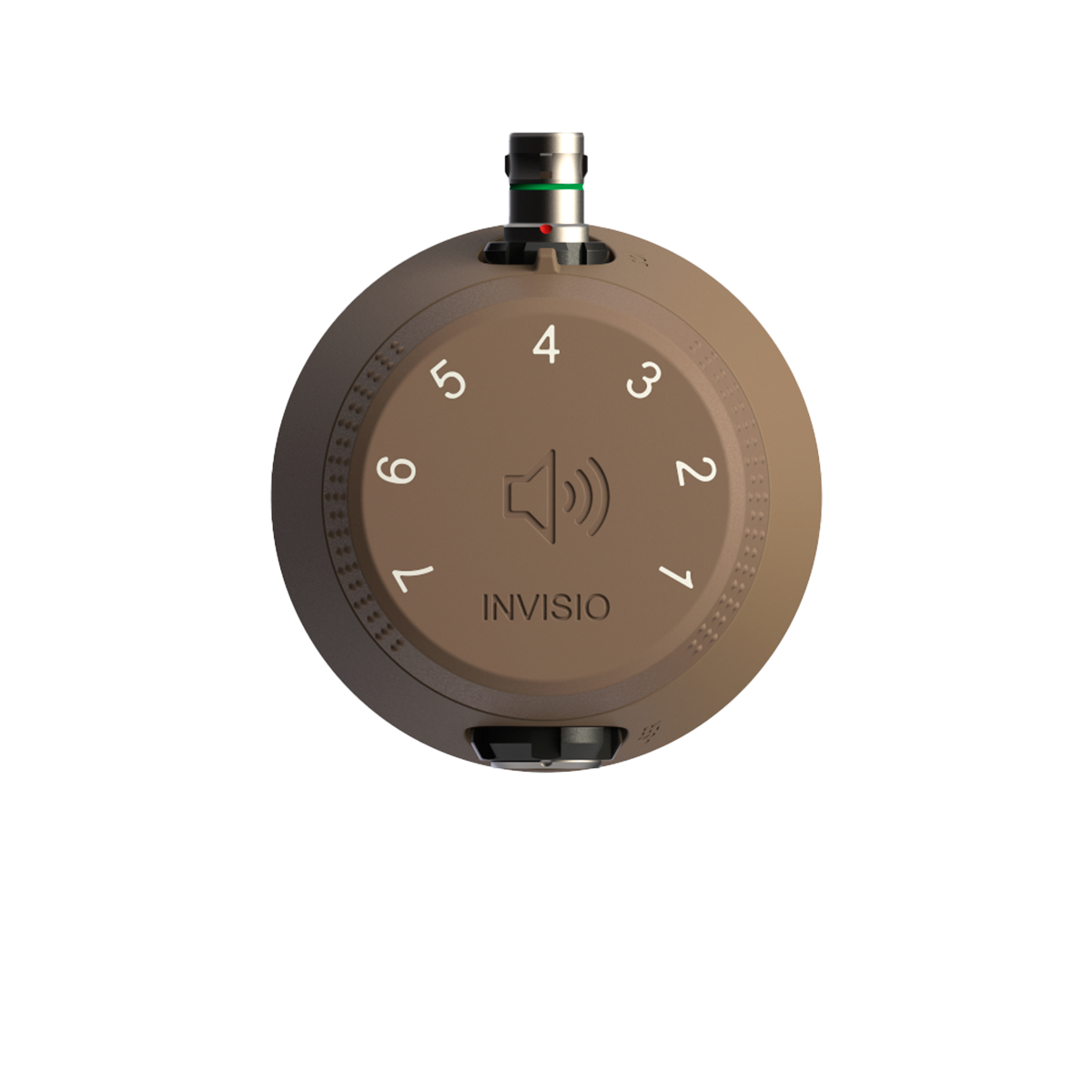

INVISIO Volume Control

Fast and independent volume control for all connected devices

The INVISIO Intercom Volume Control allows users to independently control the incoming audio volume for all connected devices.

The Volume Control has 7 audio levels, and a robust dial that allows users to quickly adjust their incoming audio on-the-go. When adjusting, the dial provides a tactile response that can be felt even while wearing heavy gloves.

The volume control unit is easy to mount, weighs only 121 grams and measures 65 x 75 x 44 mm.

INVISIO offers a variety of backings for the volume control, enabling a customized approach on how to deploy and mount it for operational use.

Tactical Hubs

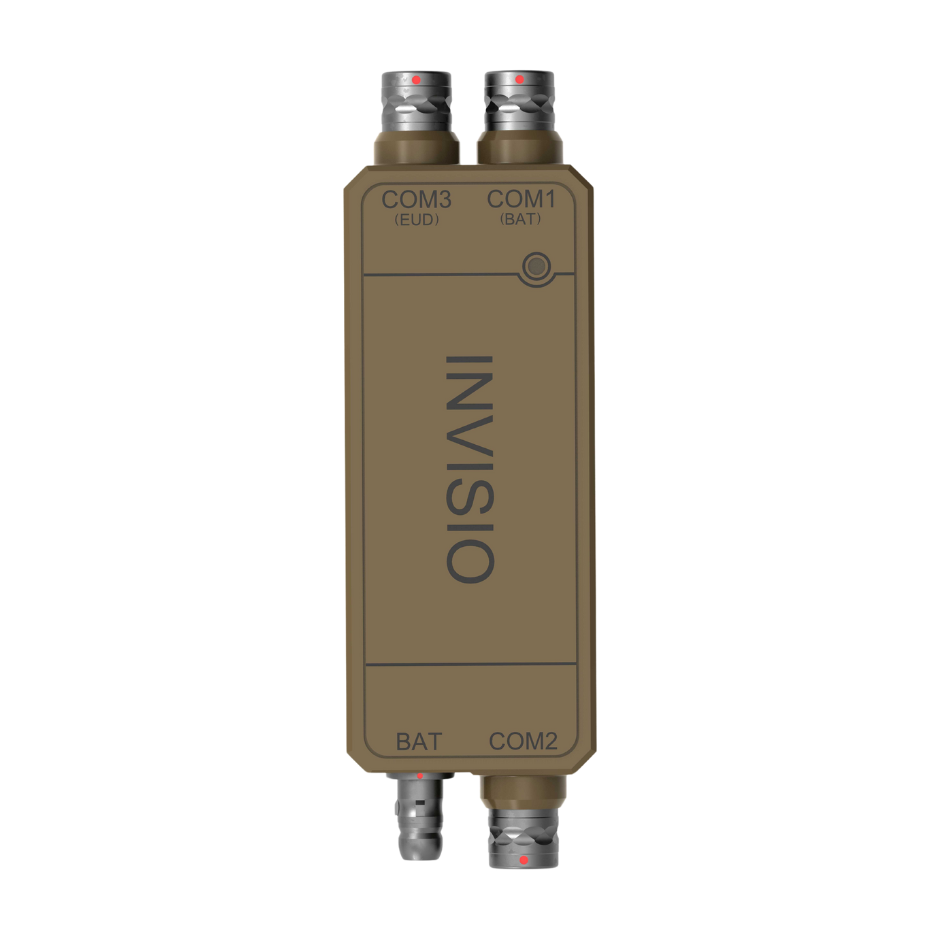

INVISIO H4

Compact 4-port tactical smart hub for agile missions

The INVISIO H4 is a lightweight 4-port hub built for extra mobility. It connects radios, EUDs, and digital devices in a single network, distributing power and data seamlessly. Compact yet powerful, the H4 supports secure routing and integrates easily with INVISIO or third-party systems.

The system offers four ports in a slim, soldier-friendly profile, enabling secure data handling with intelligent routing. Its modular design supports daisy-chaining with H6 or third-party hubs, while the rugged build ensures reliable field use. A web-based interface provides convenient power management and set-up.

It complies with MIL-STD-810G and MIL-STD-461G standards and is IP68-rated for immersion and rugged use.

The INVISIO H4 weighs 140 grams and measures 142 x 42 x 19.5 mm.

The H4 is designed to integrate with both modern and legacy tactical communication systems.

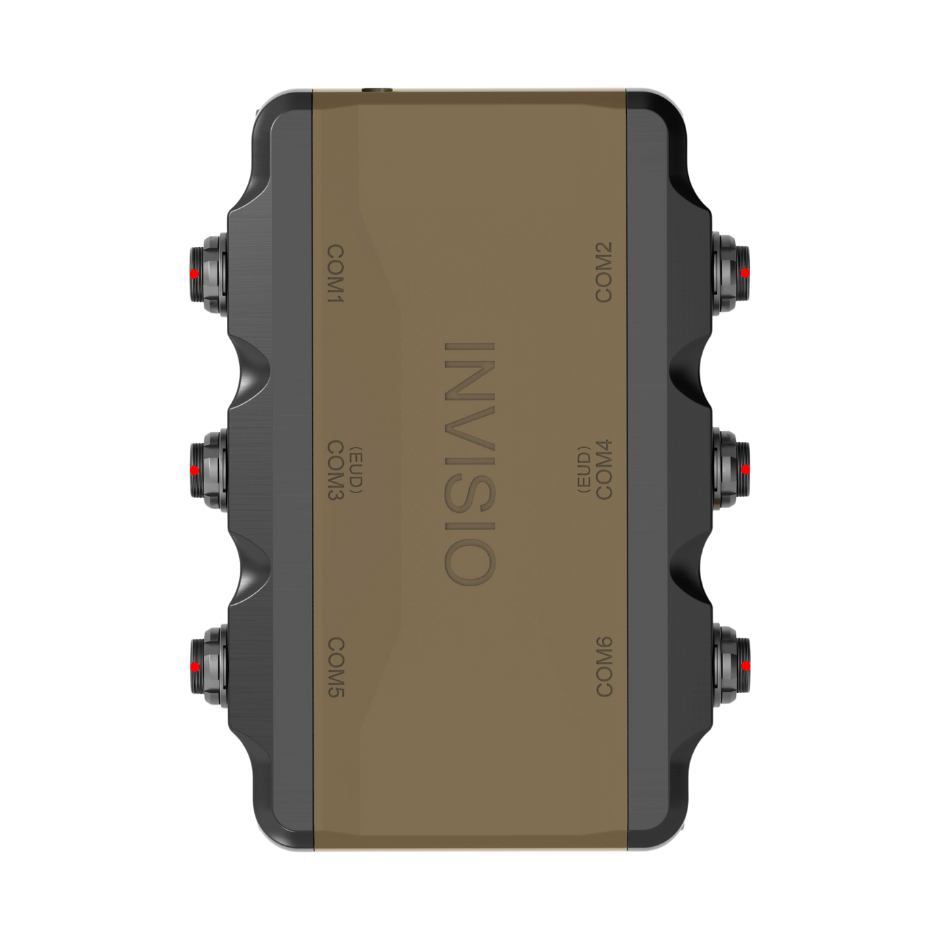

INVISIO H6

6-port tactical smart hub for complex missions

The INVISIO H6 unifies radios, sensors, and smart devices in one rugged 6-port hub. With onboard compute, intelligent routing, and secure data handling, it delivers fast access to mission-critical information. Made for the battlefield, the H6 simplifies mission-critical tasks and enhances situational awareness.

The device features six ports in a slim, soldier-friendly profile, ensuring secure data handling with intelligent routing. Its modular design allows for daisy-chaining with H4 or third-party hubs, while the rugged build guarantees reliable field use. A web-based interface supports power management and set-up.

The H6 complies with MIL-STD-810G and MIL-STD-461G standards and is IP68-rated for immersion and rugged use.

The INVISIO H6 weighs 245 grams and measures 125 x 79 x 17 mm.

The H6 is designed to integrate with both modern and legacy tactical communication systems.

Accessories

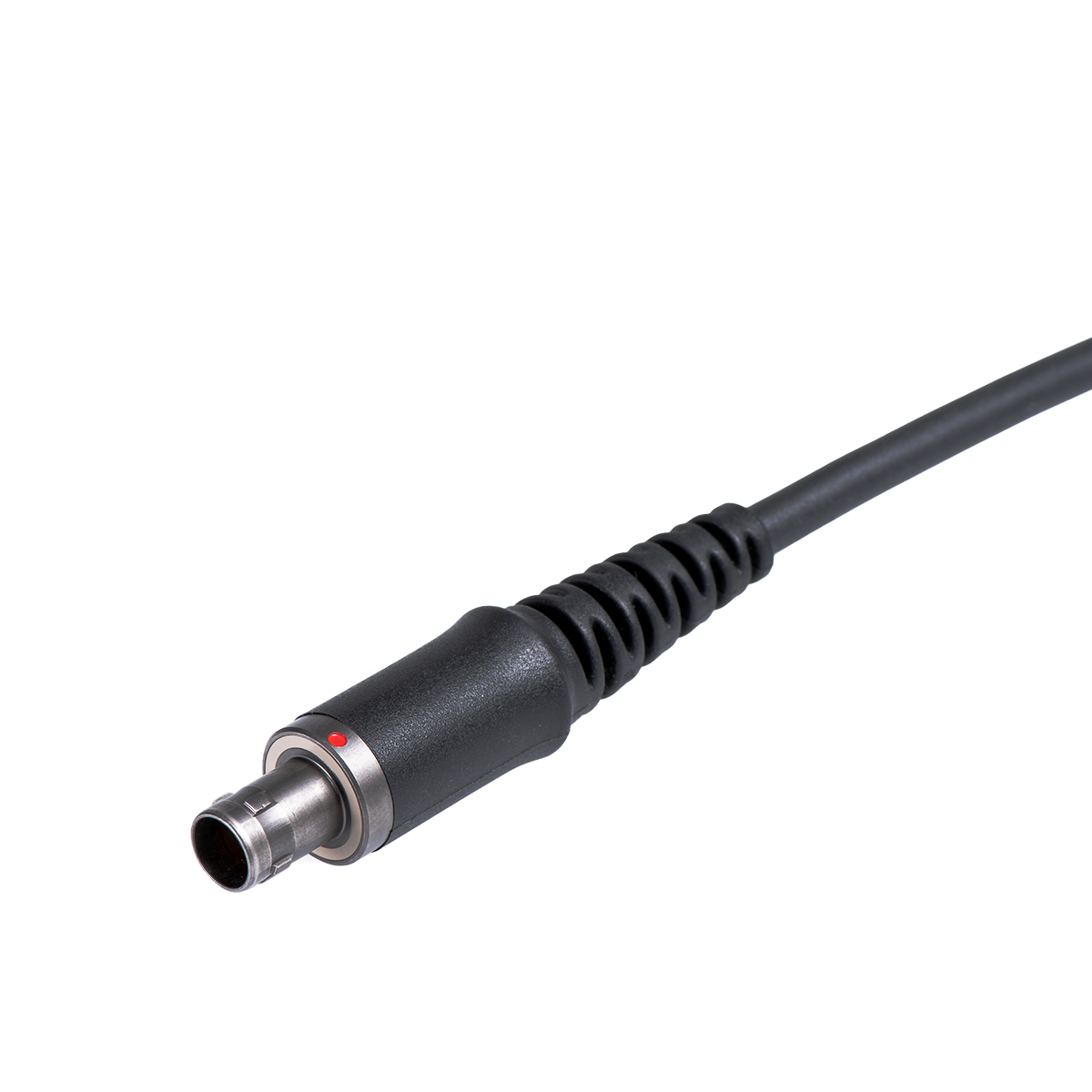

INVISIO IntelliCable®

Plug and play integration between INVISIO systems and comm devices

INVISIO IntelliCable® is key to the versatility of the INVISIO system, as it allows for deployment of new equipment without the need to update existing INVISIO equipment.

All INVISIO systems feature INVISIO IntelliCable® – a unique solution that enables INVISIO systems to be modular and plug and play when adding equipment.

INVISIO IntelliCable® technology can be programmed to the specific user’s needs and supports a wide range of tactical, digital and analog radios, smart devices, intercoms, mobile phones and other comm devices.

The cables are available in black or tan, and as straight, coiled and splitter cable types, with a possibility of adding specialized functions.

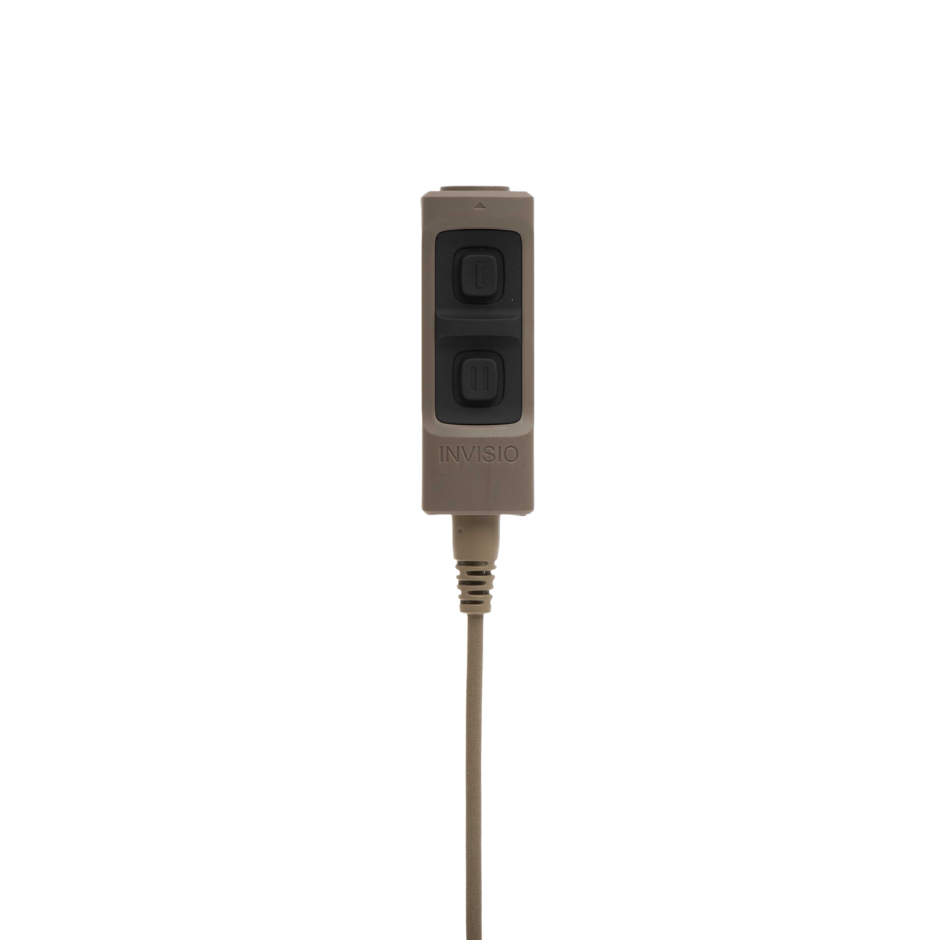

INVISIO P30

The most versatile PTT in the market

The INVISIO P30 Push-To-Talk (PTT) enables keying of single and dual net radios with two PTT buttons.

The P30 is integrated with a specific radio cable. With the splitter solution for P30, connection to two dual net radios is possible, ensuring left and right separation of radios, audio and net.

The P30 is submersible to 2 meters and draws power from the connected radio(s).

The INVISIO P30 weighs 59 grams, measures 28 x 83 x 25.6 mm and is 914 mm long (P30 and cable).

This PTT offers multiple mounting vest options providing flexibility for the wearer: a standard metal molle clip, an alligator clip, or the patent-pending INVISIO Tri-Mount™- allowing it to be mounted in a left, right and center orientation, all with one clip.

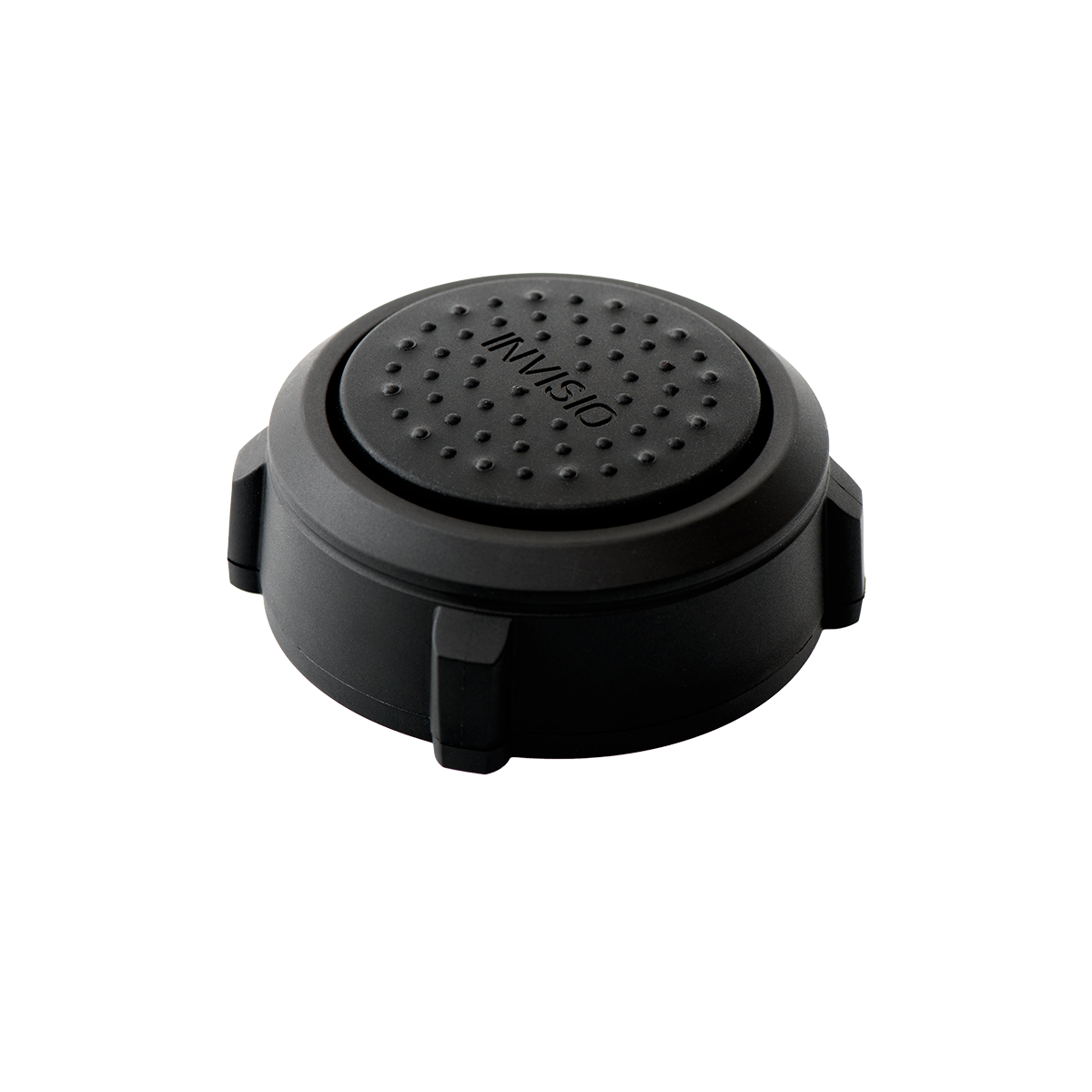

INVISIO R30 Single Button PTT

Wireless PTT with a big button for easy and accessible operation of the control unit

The INVISIO R30 Single Button PTT enables wireless keying of the INVISIO V-Series Gen II.
It uses the Bluetooth low energy (BLE) protocol for communication and has an internal, replaceable battery with a battery life span of up to 2 years.
A protective ring with snap fit is included to prevent unintended keying.

The single button PTT is extremely rugged and has been IP68 tested for 2 meters, 2 hours. It has also passed the rigorous MIL-STD-810G.

It weighs 82 grams and measures 65 mm in diameter x 25 mm in height.

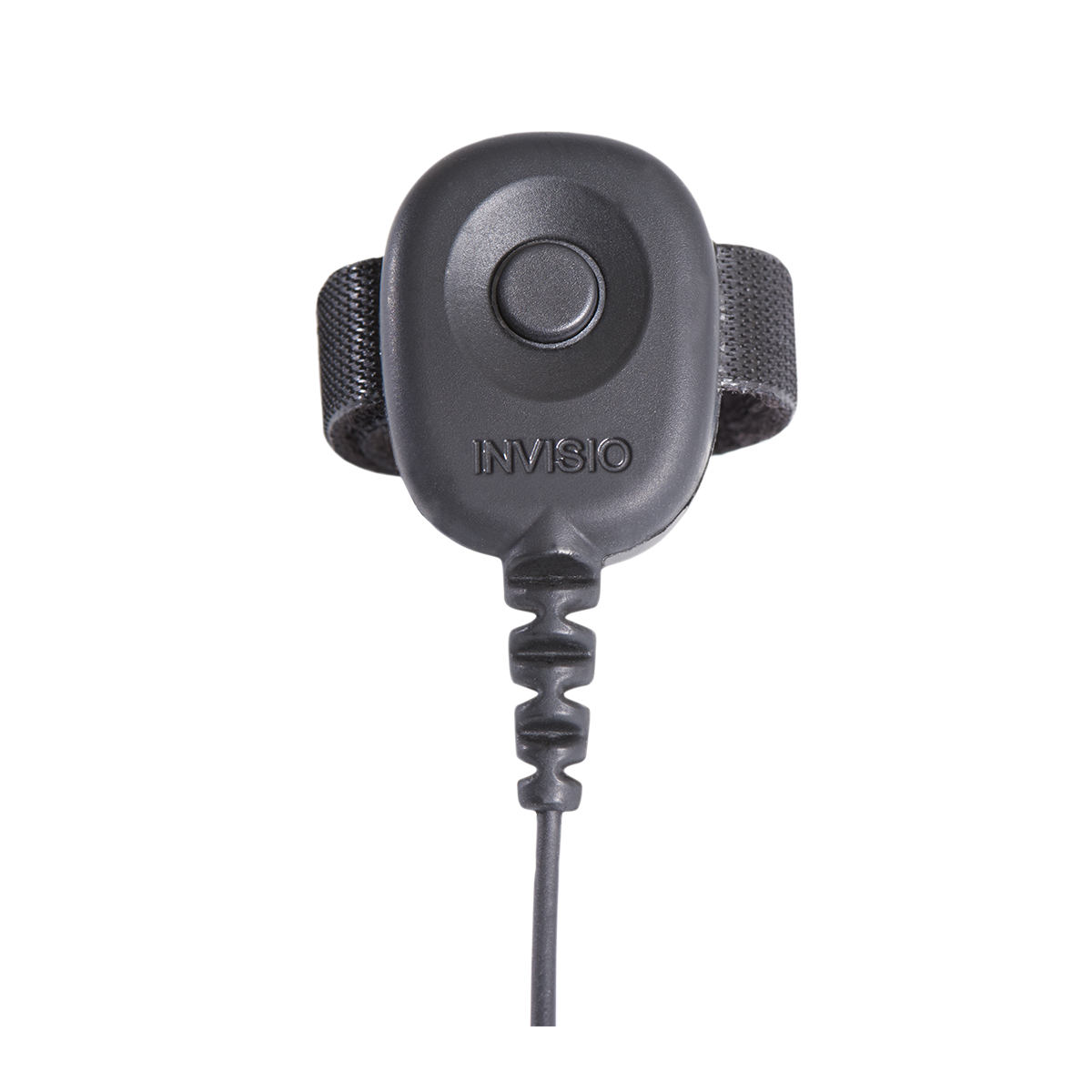

INVISIO HALO PTT

Hand mounted tactical PTT for reliable communication during parachute deployment

The INVISIO HALO PTT is a small, lightweight, and rugged remote PTT, which is intended for use when parachuting. It weighs less than 100 grams and has a cable length of 1800mm which ensures mobility during insertion.

The HALO PTT comes with a reliable and comfortable Velcro strap for attachment to the hand. Dependent on your preference it can either be attached to your right or left hand and activated with your thumb when parachuting.

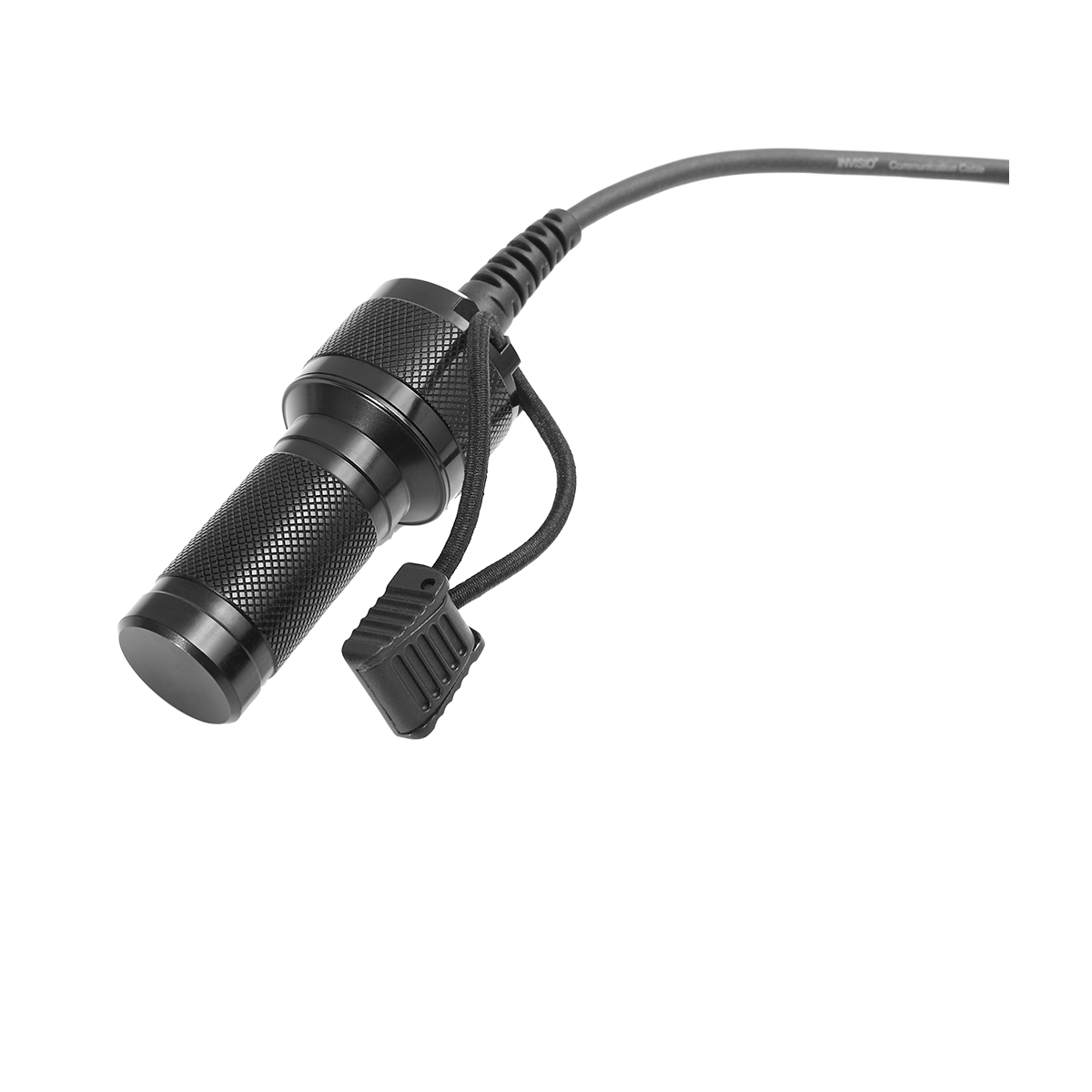

INVISIO PS30 Power Supply

Stand-alone power supply for INVISIO’s V-Series control units

The INVISIO PS30 adds a power source to our V-Series system for either standalone usage or for added operating time.

The power supply is connected directly to the control unit or indirectly via a splitter cable. It uses standard AA batteries.
The PS30 fits easily into standard MOLLE webbing and is secured with the strap.

The power supply weighs 60 grams, and the cable length is 300 mm. It has been immersion tested to 20 meters for 2 hours.

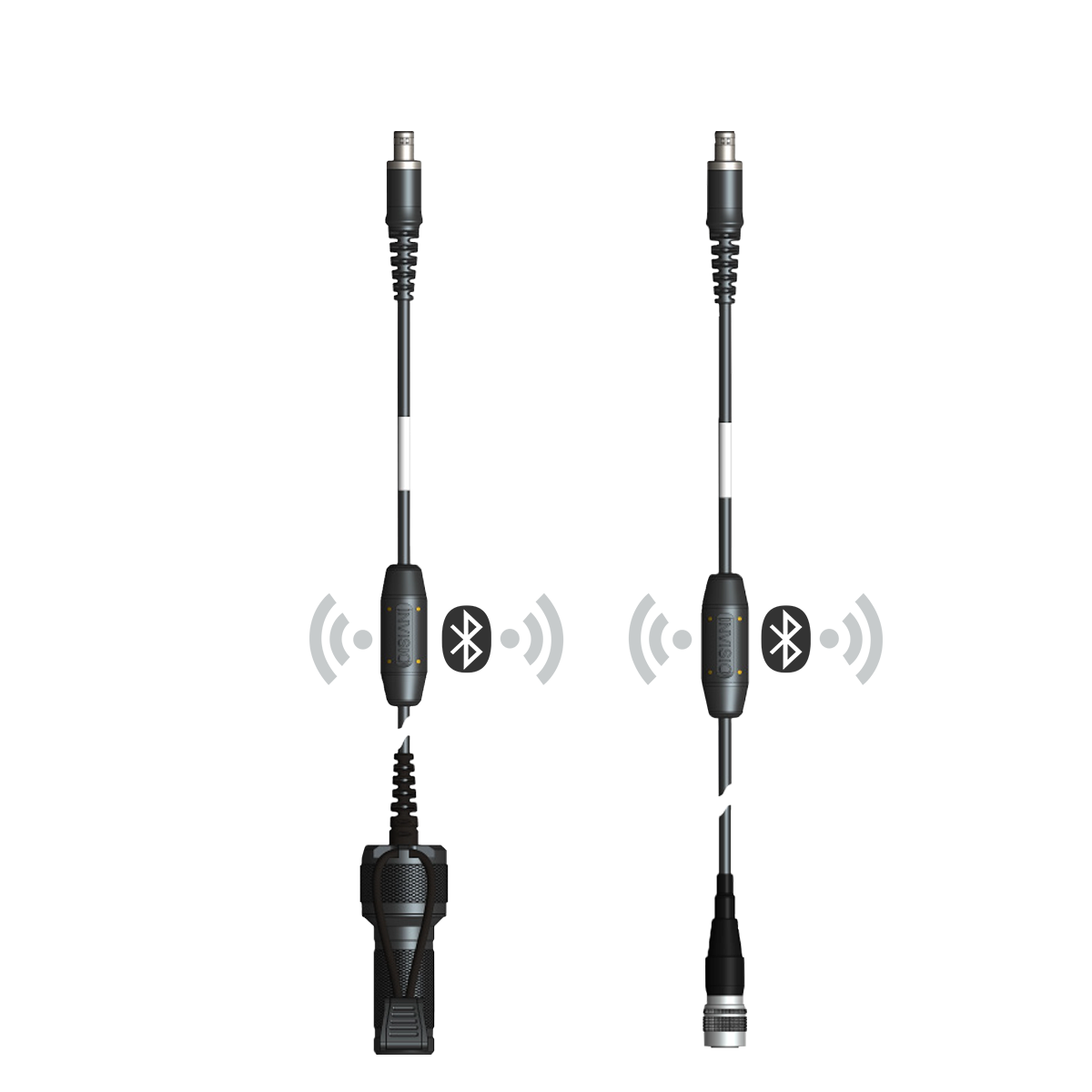

INVISIO Bluetooth Audio Device

Wireless comms between INVISIO systems and Bluetooth devices

The INVISIO Bluetooth Audio Device enables wireless comms with Bluetooth devices, such as mobile phones. Once connected to a mobile phone, incoming calls are managed by the control unit.

The audio device comes with Bluetooth v5.0 and is compatible with INVISIO’s V-Series Gen II control units.

The Bluetooth Audio Device comes in two versions:

1) A radio cable version with an integrated Bluetooth module
2) An INVISIO PS30 (power supply) version with an integrated Bluetooth module

The device is immersion tested to 20 meters for 2 hours.

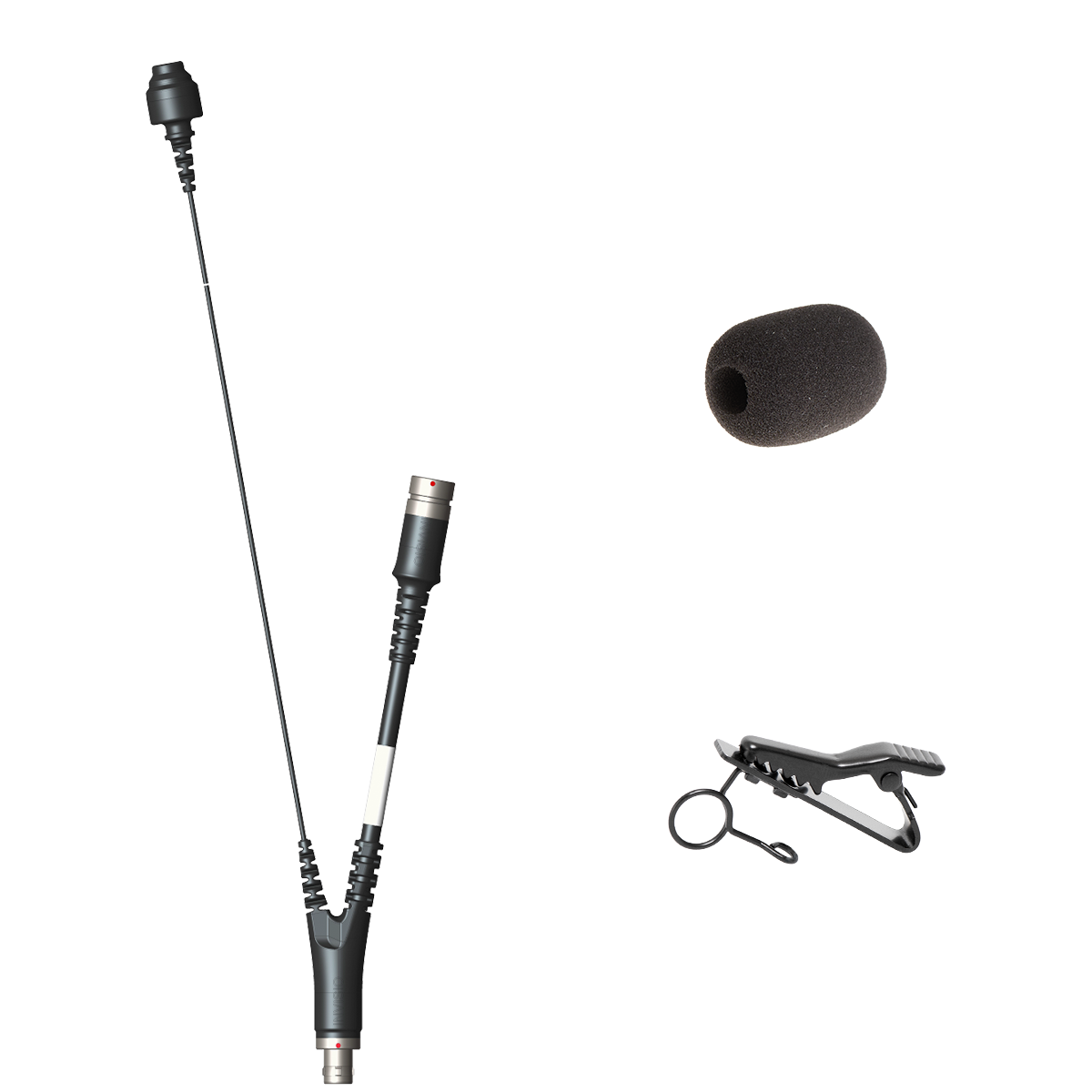

Lapel Mic for In-Ear Headsets

A small, discrete microphone for clear comms in medium- to low-noise environments

The INVISIO lapel mic is made for users who need a discreet, highly sensitive microphone.

The lapel mic can be used to replace an ITE headset’s microphone in medium- to low-noise environments as the omni-directional microphone picks up even the quietest sounds. This could e.g. be for the X7 and X5 headset. It is also available in a 3.5 mm jack version so it can be used together with other headsets.

The lapel mic is small and lightweight and attaches directly to the user’s clothes via a cloth-friendly alligator clip.

The lapel mic is immersion tested for 2 meters for 2 hours.

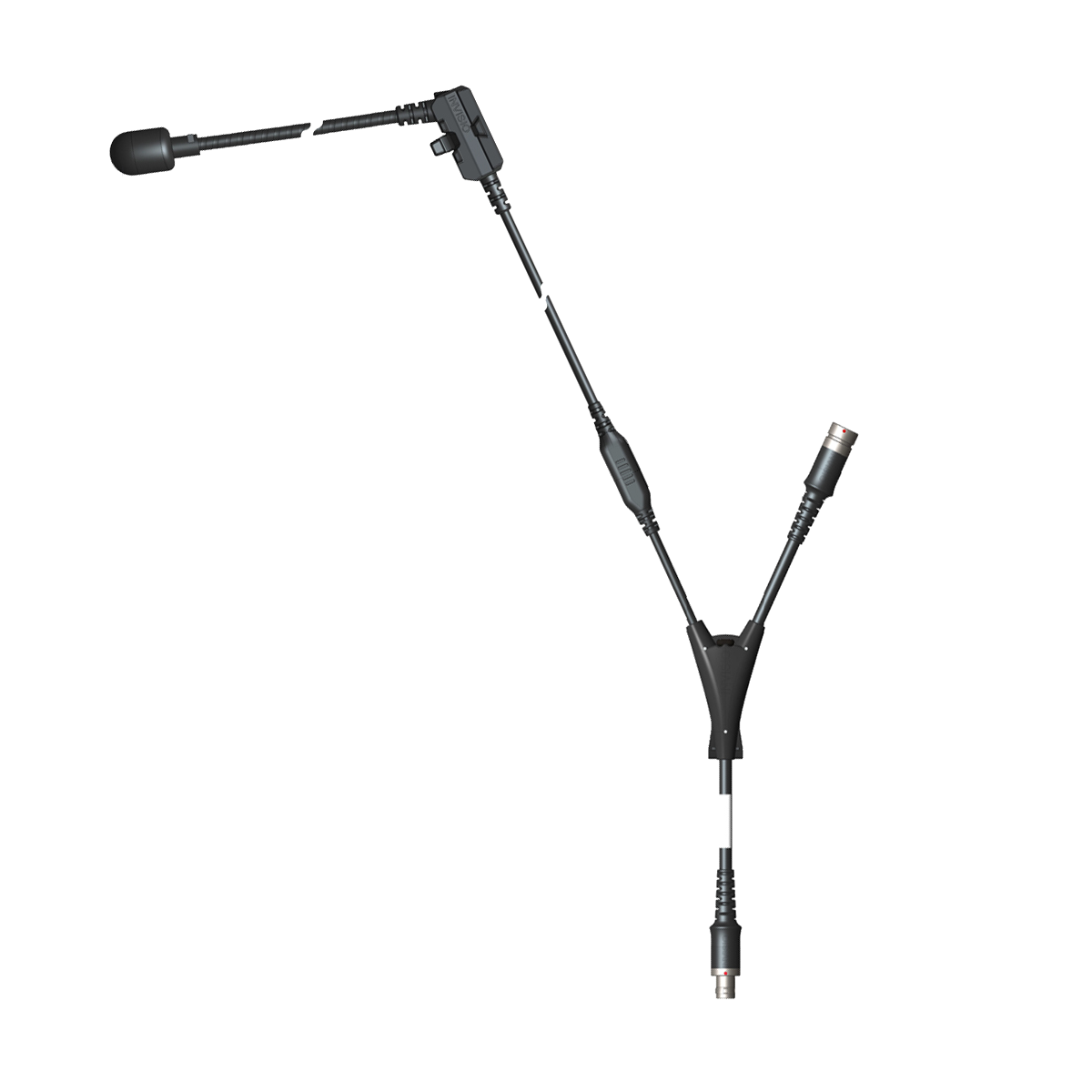

INVISIO Hybrid Boom Mic

Highly versatile boom microphone for extreme high-noise environments

The INVISIO Hybrid Boom Mic is a single-sided boom microphone designed to be mounted on a helmet or the head with a headband. When operating in extremely high noise, the hybrid boom microphone provides unparalleled transmission quality.

The hybrid boom mic is used together with the INVISIO X5 in-ear headset and the V-Series Gen II control units.

The hybrid boom mic comes in two configurations:
– A headstrap configuration
– A helmet mount configuration

It is submersible down to 2 meters for 2 hours and weighs 168 grams.

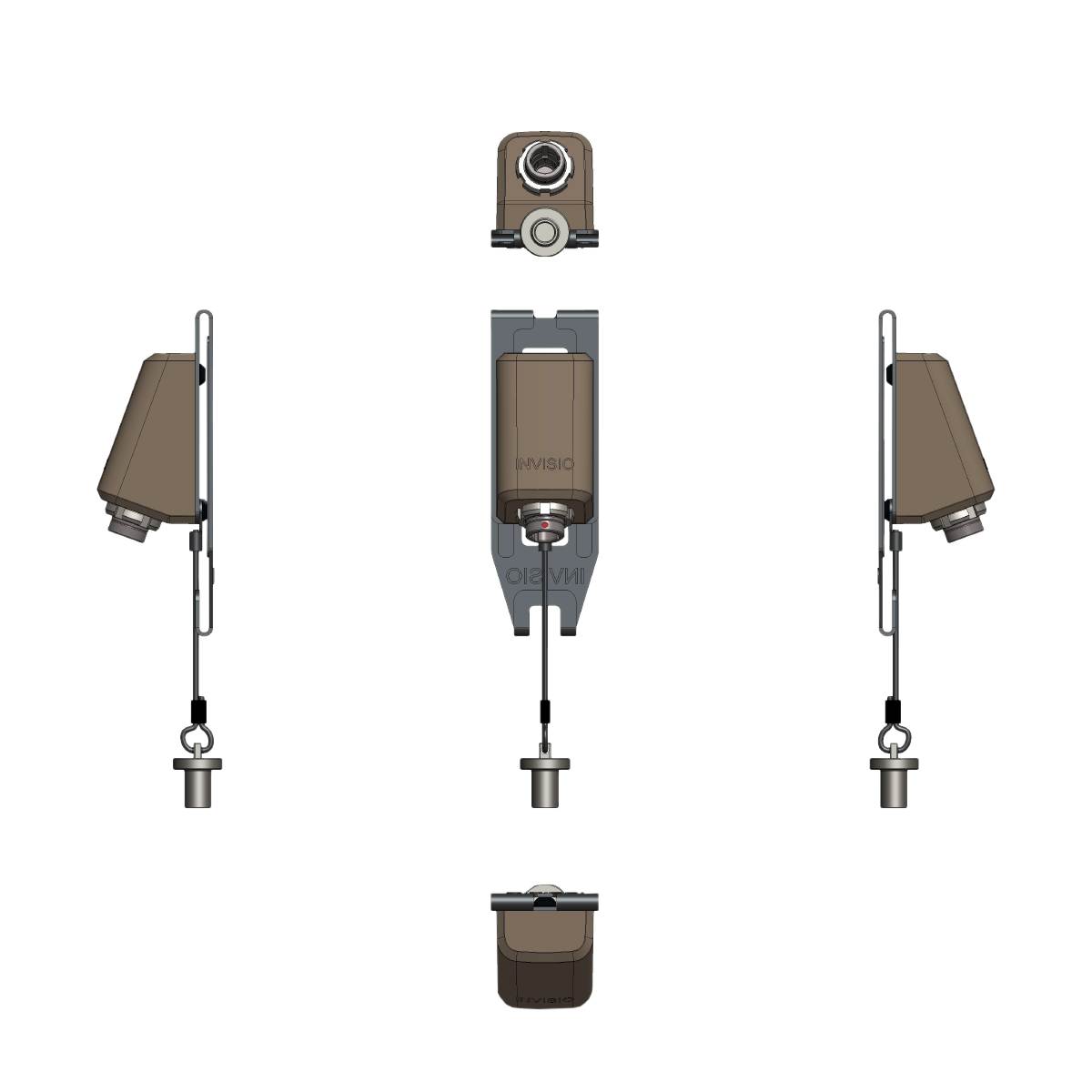

Mounting Brackets

The right attachment for your INVISIO Intercom solution

With the mounting brackets, you ensure your INVISIO Intercom solution is adequately mounted and that items such as cables don’t get tangled or damaged.

The mounting brackets come in different shapes and sizes depending on the products they are designed for.
The brackets are all black and made of epoxy-coated stainless steel to ensure durability in even the most demanding environments.

Pictured:

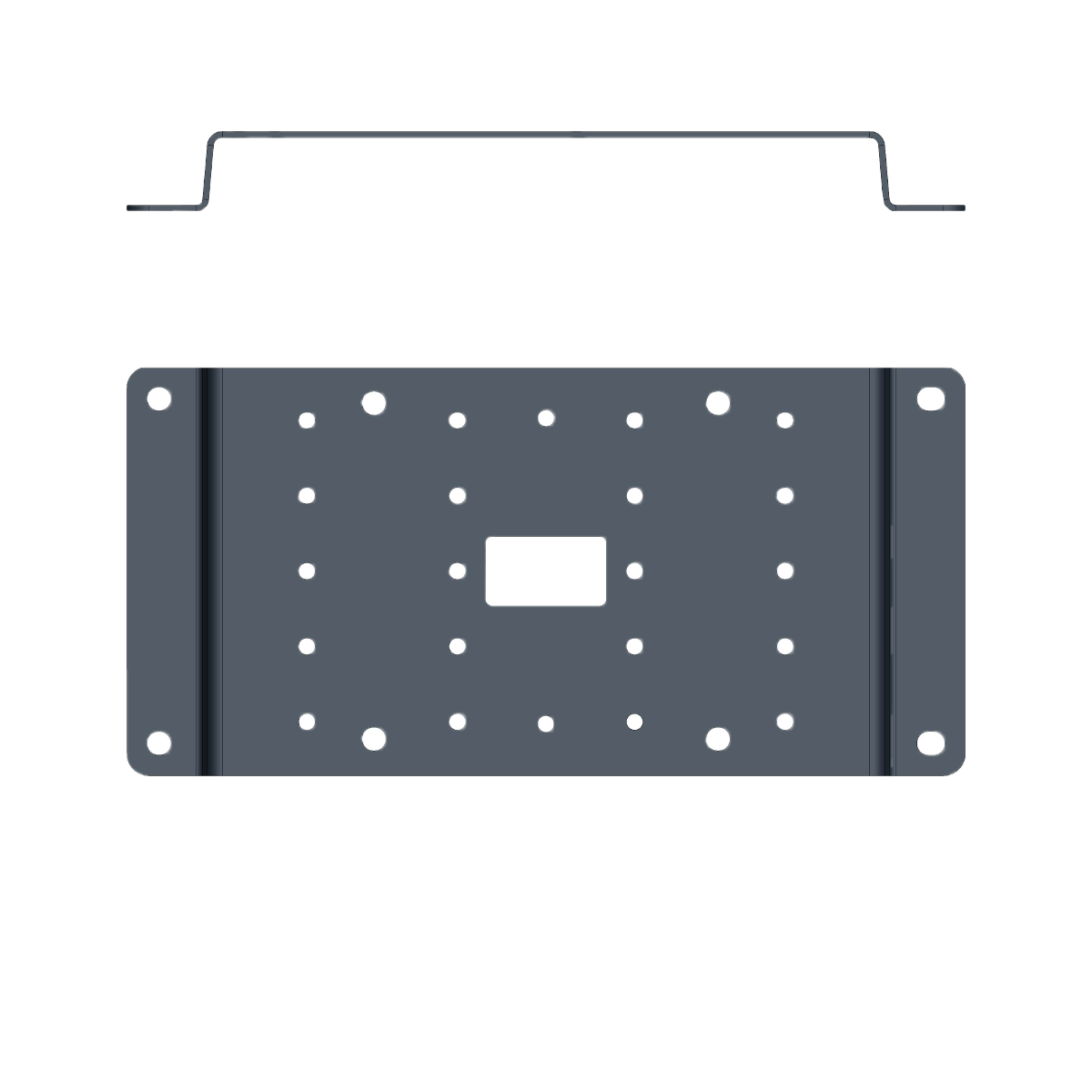

Mounting bracket for the INVISIO Intercom system unit.
Weighs 232 grams and measures 195 x 95 x 18.5 mm

Mounting bracket for the INVISIO Volume Control Station.
Weighs 86 grams and measures 110 x 65 x 12 mm

Mounting bracket for the INVISIO Volume Control Station + INVISIO cable parking.
Weighs 111 grams and measures 145 x 65 x 12 mm

Cable Parking

Protect and organize your INVISIO Intercom cables

The INVISIO cable parking set protects and organizes the Intercom user cables that are not connected to a control unit.

Cables risk getting damaged if hanging loose and cable parking makes it easy to organize and find the cables when needed.

The cable parking set comes with a MOLLE clip and a metal cap.

The cable parking set weighs 45 g and measures 84.5 x 28 x 30.3 mm.

INVISIO M30 Finger PTT

Finger mounted tactical PTT for reliable communication

The INVISIO M30 is a small, lightweight and rugged finger PTT. It is intended for professional users such as paratroopers, snipers and semi-covert operators.

The M30 finger PTT is exceptionally light and comfortable. It weighs only 20 grams and measures 28 x 22 x 8 mm.

The PTT comes with a reliable and comfortable Velcro strap for attachment to finger or equipment.

The fully over-molded housing requires no screws and has been immersion tested to 2 meters for 2 hours.

INVISIO R30 Wireless Remote PTT

Wireless remote PTT with 2 PTT buttons for hands-free operation of the control unit

The INVISIO R30 wireless PTT enables remote operation of V-Series Gen II control units and mirrors the key combos and modes of the control units.

It features 2 PTT buttons and 1 mode button and comes with rail mount, cable ties and a MOLLE clip.

This remote PTT uses the Bluetooth Low Energy (BLE) protocol for communication, and up to seven R30’s can be paired to a single control unit.

The INVISIO R30 is submersible to 20 meters and has an internal, replaceable battery with a battery life span of up to 2 years.

The INVISIO R30 weighs 39 grams and measures 37 x 15 x 50 mm.
